PBS-3

Selector Switch Station
With Start / Stop Pushbuttons

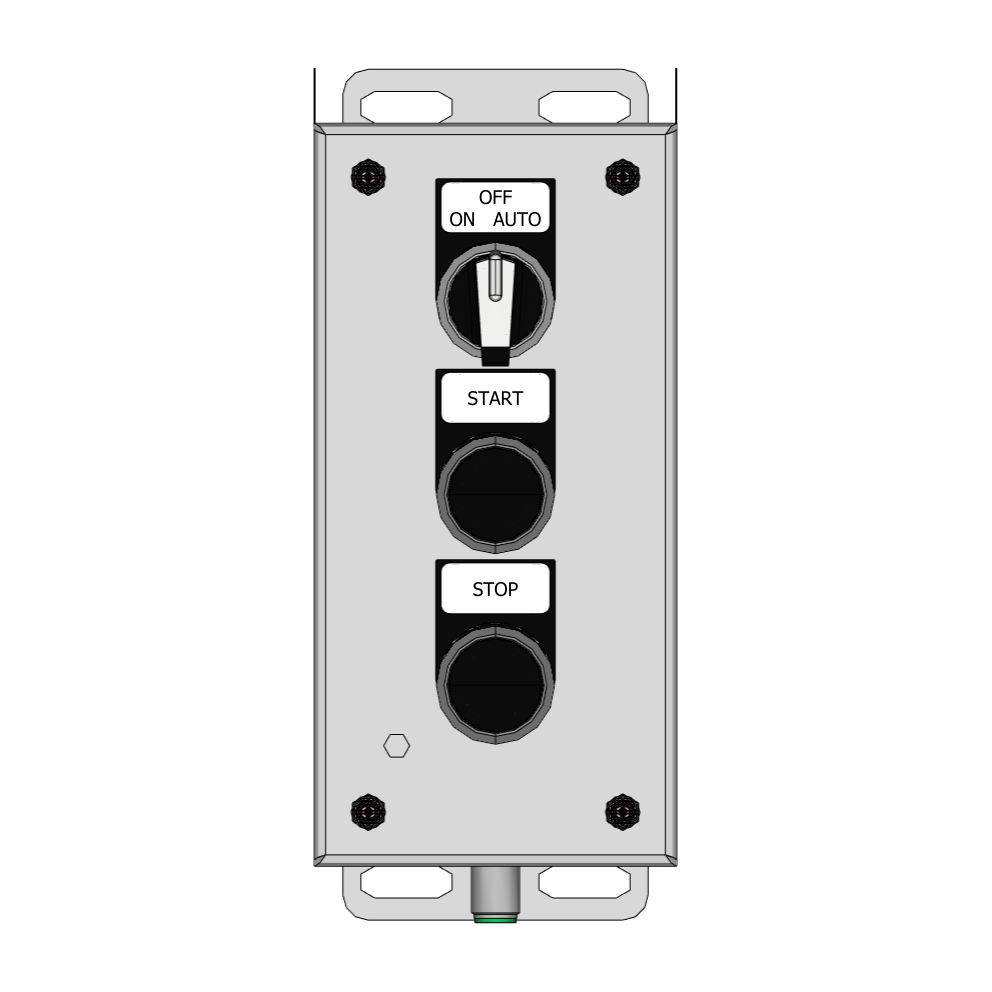

A pre-wired, labelled and tested three-device motor control station built on Siemens SIRIUS ACT 3SU pilot devices in a Saginaw 3PBGX painted steel enclosure. A maintained three-position selector gives ON / OFF / AUTO mode selection, and two momentary black pushbuttons give START and STOP — all four contacts on one M12 8-pin connector.

  • ON / OFF / AUTO selectionThree-position maintained selector, two contacts, for hand and automatic mode
  • START and STOP pushbuttonsMomentary, non-illuminated, one 1 N.O. contact each
  • One M12 cable to the machine8-pin A-coded male bulkhead with a 3.2 ft pigtail carries all four contacts and PE
  • Re-legendable in the fieldEvery device carries a snap-in labelling plate in a label holder
  • Indoor and outdoor ratedSaginaw 3PBGX painted steel with integral mounting feet
  • Documented as builtSchematic, model view, cable diagram and bill of material ship with every station

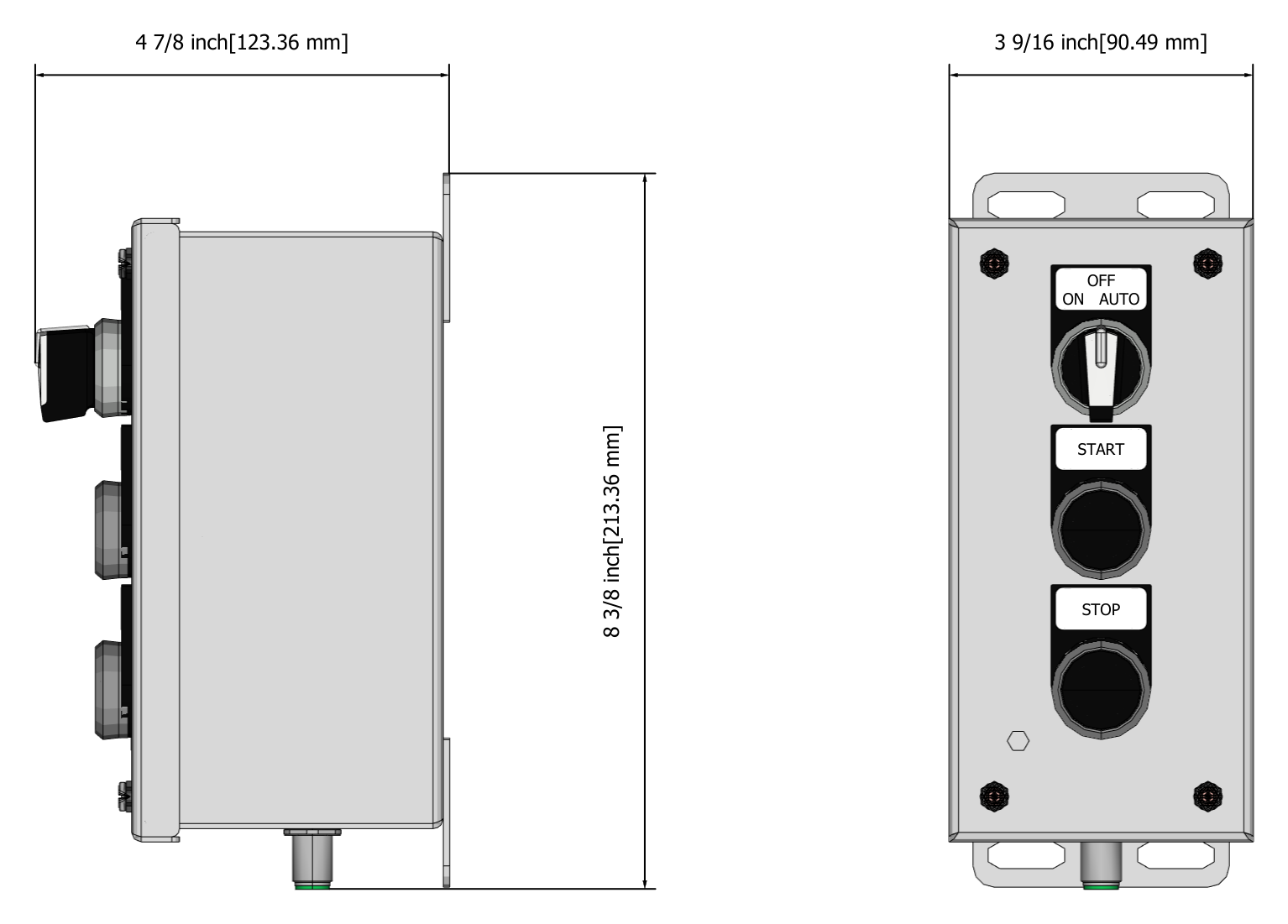

Dimensioned side and front elevations of the PBS-3 selector switch station showing the ON / OFF / AUTO selector, START and STOP pushbuttons and the M12 bulkhead connector
PBS-3 · dimensioned side and front elevations

At a glance

Part numberPBS-3
DrawingD10044, revision 1
SeriesThink-PLC Ready-Set-Go
SelectorSiemens 3SU1052-2BL60-0AA0, three-position maintained (I-O-II), ON / OFF / AUTO legend
Selector contacts(2) Siemens 3SU1400-1AA10-1BA0, 1 N.O. each
Pushbuttons(2) Siemens 3SU1050-0AB10-0AA0, black, momentary, non-illuminated — START and STOP
Pushbutton contacts(2) Siemens 3SU1400-1AA10-1BA0, 1 N.O. each
Common feed24 VDC to all four contacts from the connector
LegendsSiemens 3SU1900-0AR10-0AA0 label holders with 3SU1900-0AC81-0AA0 snap-in plates — re-legendable in the field
Field connectionMurrelektronik 7231-17161-9730100, M12 8-pin male A-coded bulkhead with a 3.2 ft pigtail
EnclosureSaginaw 3PBGX painted steel, integral mounting feet
Dimensions3-9/16 ″ × 4-7/8 ″ × 8-3/8 ″ (90.5 × 123.4 × 213.4 mm)
RatingIndoor and outdoor use
Wiring practiceRing-lugged and labelled both ends; enclosure and door bonded to the connector PE pin with 14 AWG GN/YE
Supplied withCustomer drawing package — schematic, model view, cable diagram and bill of material
Lead timeMade to order
WarrantyThree years
Built inLexington, North Carolina, USA

What is inside

Operators 3 devices

Three 22 mm SIRIUS ACT positions on the door, each with its own label holder and snap-in legend plate.

  • Selector switch, 3 position3SU1052-2BL60-0AA0 · maintained, I-O-II
  • Pushbutton, black · START3SU1050-0AB10-0AA0 · momentary
  • Pushbutton, black · STOP3SU1050-0AB10-0AA0 · momentary
  • Contact modules, 1 N.O.(4) 3SU1400-1AA10-1BA0
  • Label holders and plates(3) 3SU1900-0AR10-0AA0 with 3SU1900-0AC81-0AA0

Connection M12, 8-pin

All four contacts share a common 24 VDC feed and return to the PLC on one A-coded connector.

  • Selector, position INormally open
  • Selector, position IINormally open
  • STARTNormally open, momentary
  • STOPNormally open, momentary
  • GroundBonded to the enclosure and the door

The STOP pushbutton is a control device with a normally-open contact, not a safety stop. Where a machine needs an emergency stop, pair this station with a PBS-1 or PBS-2.

One cable to the machineFour contacts and PE on a single M12 8-pin connector
Hand or automaticMaintained ON / OFF / AUTO selection for local motor control
Re-legendableSnap-in plates change in the field without new hardware
Indoor and outdoorPainted steel with integral mounting feet
Three year warrantyEngineered, built and supported in North Carolina

Documentation and downloads

Customer drawing packageMulti-line schematic, model view with dimensions, cable diagram and the summarised parts list, as the station was built.PDF · available on requestPBS-3 dimensional drawingSide and front elevations with overall dimensions, legends and the connector location.PDF · available on requestPBS-3 3D modelSTEP solid of the complete station for dropping into your machine or cell layout.STEP · available on requestPBS-1 · Emergency stop stationDual-channel illuminated e-stop in a single-hole enclosure, on one M12 8-pin connector.View the product →PBS-2 · E-stop with illuminated resetThe same e-stop with a blue illuminated reset pushbutton on its own M12 5-pin connector.View the product →A station built to your legendDifferent operators, legends, contact counts or connector styles — the same enclosure family and the same drawing package.Request a quote →
  1. All Products
  2. All Products
  3. Selector Switch Station with Start / Stop Pushbuttons
35% Markup

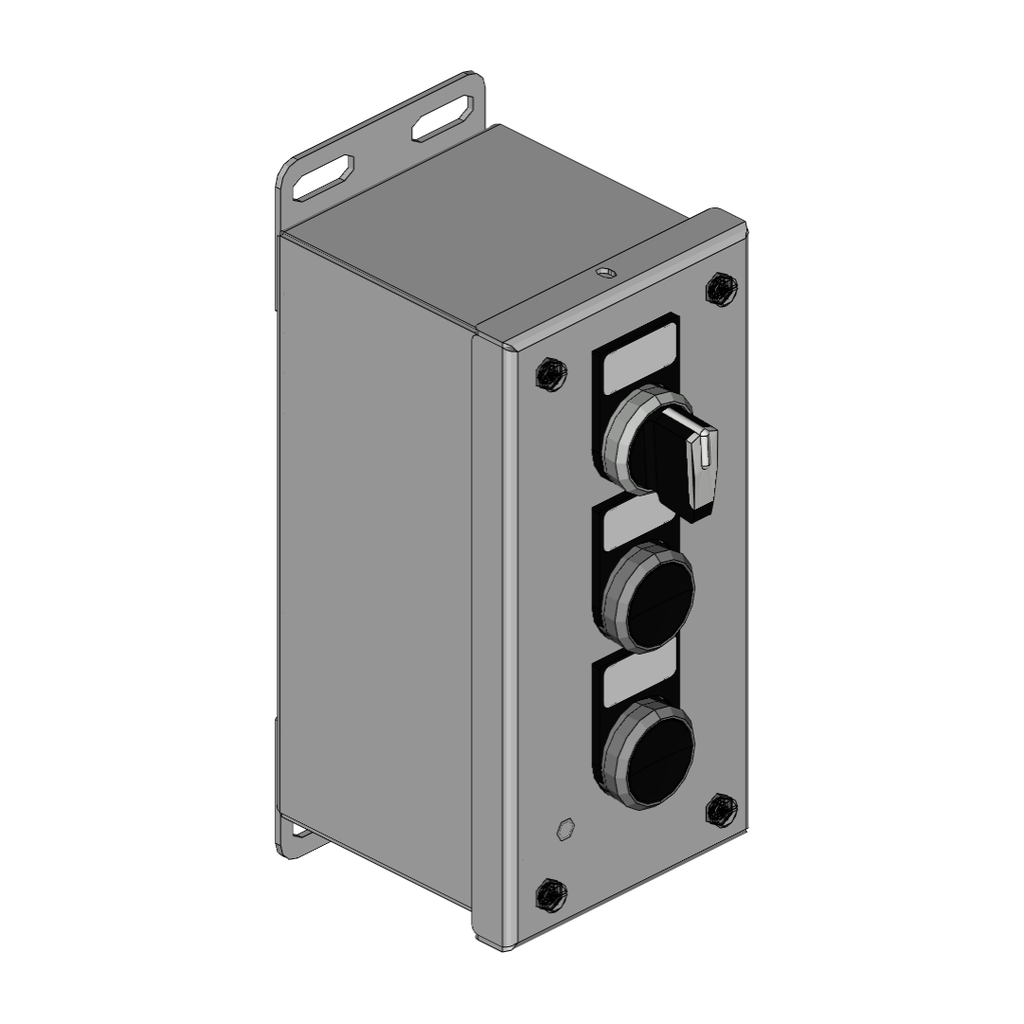

Selector Switch Station with Start / Stop Pushbuttons

Part Number PBS-3
https://think-plc.com/web/image/product.template/330941/image_1920?unique=82fab89

Selector Switch Station with Start / Stop Pushbuttons

Part number: PBS-3  |  Drawing D10044  |  Think-PLC Ready-Set-Go Series

A pre-wired, labelled and tested three-device motor control station built on Siemens SIRIUS ACT 3SU pilot devices in a Saginaw 3PBGX painted steel enclosure. A three-position maintained selector switch gives ON / OFF / AUTO mode selection, and two momentary black pushbuttons provide START and STOP commands.

All four normally-open contacts share a common 24 VDC feed and land on a single M12 8-pin A-coded male bulkhead with a 3.2 ft pigtail, so the station wires to a machine or a remote I/O drop with one cable. Legends are snap-in plates held in label holders, so the station can be re-legended in the field without changing hardware. Each unit ships with the customer drawing package it was built from: schematic, model view, cable diagram and bill of material.

Specifications

  • Enclosure: Saginaw 3PBGX painted steel, indoor/outdoor rated, integral mounting feet
  • Dimensions: 3-9/16 in × 4-7/8 in × 8-3/8 in (90.5 × 123.4 × 213.4 mm)
  • Selector: Siemens 3SU1052-2BL60-0AA0, 3-position maintained (I-O-II), ON / OFF / AUTO legend
  • Pushbuttons: (2) Siemens 3SU1050-0AB10-0AA0 black momentary — START and STOP
  • Contacts: (4) 1 N.O. contact modules on a common 24 VDC feed
  • Field connection: M12 8-pin male, A-coded bulkhead, 3.2 ft pigtail
  • Legends: snap-in labeling plates in label holders — re-legendable in the field
  • Documentation: customer drawing package (schematic, model view, cable diagram, BOM)
  • Designed, built and tested in Lexington, NC, USA

Ordering: Standard configurations are available for direct online purchase. For purchase orders, custom modifications or application support, contact THINK-PLC to configure the solution to your requirements.

Freight is billed separately and is not included at checkout. We will contact you after your order with a freight quote and delivery options; shipment is scheduled after approval. All products are made to order and lead times vary with specification and order volume.

$ 435.19 435.19 USD $ 435.19 Tax Excluded

Call for price

This combination does not exist.

Built in the USA 3 Year Warranty
