PBS-1

Emergency Stop Station
Illuminated, Dual Channel

A pre-wired, labelled and tested emergency stop station built on Siemens SIRIUS ACT 3SU pilot devices in a Saginaw 1PBGX painted steel enclosure. Two independent normally-closed safety contacts, a 24 V red LED and the ground all land on one M12 8-pin A-coded bulkhead, so the station mounts to a machine with a single cable and no panel wiring.

  • Dual-channel safety contactsTwo independent 1 N.C. contact modules, ready for a two-channel safety relay
  • 40 mm illuminated mushroomPositive latching, rotate-to-unlatch, on a yellow EMERGENCY STOP backing plate
  • One M12 cable to the machine8-pin A-coded male bulkhead with a 3.2 ft pigtail carries both channels, the LED and PE
  • Indoor and outdoor ratedSaginaw 1PBGX painted steel with integral mounting feet
  • Red 24 V indicationSIRIUS ACT LED module, 24 V AC/DC, wired to its own pair at the connector
  • Documented as builtSchematic, model view, cable diagram and bill of material ship with every station

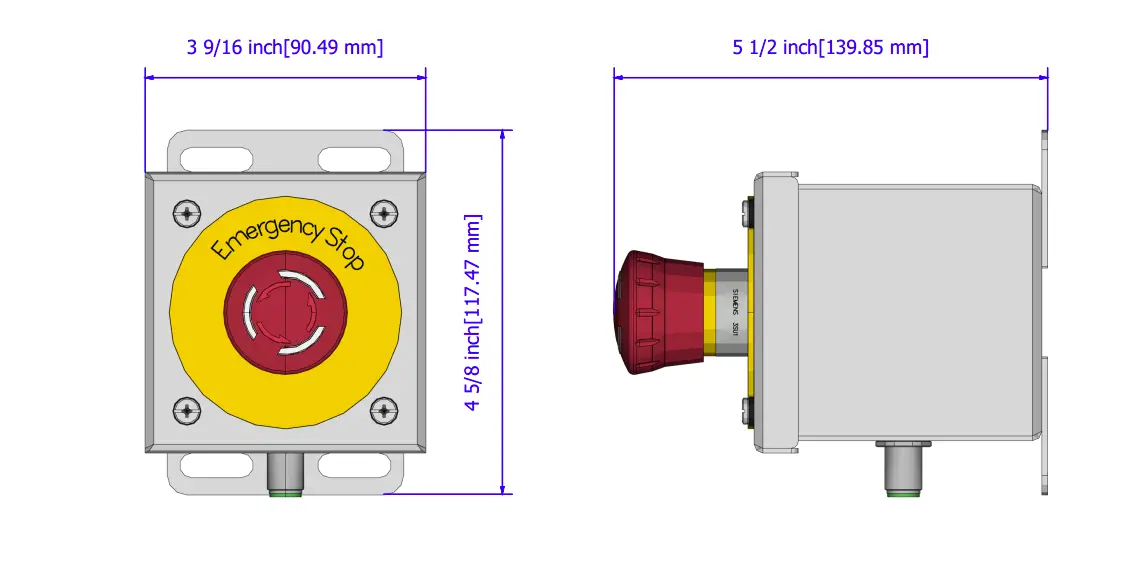

Front and side elevations of the PBS-1 emergency stop station showing the yellow EMERGENCY STOP legend plate, red 40 mm mushroom head and the M12 bulkhead connector
PBS-1 · front and side elevations

At a glance

Part numberPBS-1
DrawingD10042, revision 1
SeriesThink-PLC Ready-Set-Go
OperatorSiemens 3SU1051-1HB20-0AA0, illuminated 40 mm red mushroom, positive latching, rotate-to-unlatch
Safety contacts(2) Siemens 3SU1400-1AA10-1CA0, 1 N.C. each — dual channel
IndicationSiemens 3SU1401-1BB20-1AA0 LED module, red, 24 V AC/DC
Legend plateSiemens 3SU1900-0BB31-0DA0 EMERGENCY STOP backing plate, yellow
Field connectionMurrelektronik 7231-17161-9730100, M12 8-pin male A-coded bulkhead with a 3.2 ft pigtail
EnclosureSaginaw 1PBGX painted steel, integral mounting feet
Dimensions3-9/16 ″ × 4-5/8 ″ × 5-1/2 ″ (90.5 × 117.5 × 139.9 mm)
RatingIndoor and outdoor use
Wiring practiceRing-lugged and labelled both ends; enclosure and door bonded to the connector PE pin with 14 AWG GN/YE
Supplied withCustomer drawing package — schematic, model view, cable diagram and bill of material
Lead timeMade to order
WarrantyThree years
Built inLexington, North Carolina, USA

What is inside

Operator 1 device

A single 22 mm SIRIUS ACT position carrying the e-stop head, its contacts and its LED.

  • Illuminated e-stop head3SU1051-1HB20-0AA0 · 40 mm red mushroom
  • Contact module, 1 N.C.3SU1400-1AA10-1CA0 · channel 1
  • Contact module, 1 N.C.3SU1400-1AA10-1CA0 · channel 2
  • LED module, red3SU1401-1BB20-1AA0 · 24 V AC/DC
  • Backing plate3SU1900-0BB31-0DA0 · yellow EMERGENCY STOP

Connection M12, 8-pin

Everything the machine needs on one A-coded connector, pre-terminated on a 3.2 ft pigtail.

  • E-stop channel 1Normally closed, volt-free
  • E-stop channel 2Normally closed, volt-free
  • LED supply24 V positive and return
  • GroundBonded to the enclosure and the door

The station is a passive device. Both channels are volt-free contacts — wire them into your safety relay or F-DI and set the category from the circuit you build around it.

One cable to the machineNo panel wiring, no gland pack, no loose leads
Dual channelTwo independent N.C. contacts for a two-channel circuit
Illuminated in red24 V LED so the head is visible in a dark cell
Indoor and outdoorPainted steel with integral mounting feet
Three year warrantyEngineered, built and supported in North Carolina

Documentation and downloads

PBS-1 dimensional drawingFront and side elevations with overall dimensions and the connector location, as built.PDF · downloadPBS-1 3D modelSTEP solid of the complete station for dropping into your machine or cell layout.STEP · downloadCustomer drawing packageMulti-line schematic, model view with dimensions, cable diagram and the summarised parts list, as the station was built.PDF · available on requestPBS-2 · E-stop with illuminated resetThe same e-stop with a blue illuminated reset pushbutton on its own M12 5-pin connector.View the product →PBS-3 · Selector switch with start / stopON / OFF / AUTO selection with START and STOP pushbuttons on a single M12 8-pin connector.View the product →A station built to your legendDifferent operators, legends, contact counts or connector styles — the same enclosure family and the same drawing package.Request a quote →
  1. All Products
  2. All Products
  3. Emergency Stop Station
35% Markup

Emergency Stop Station

Part Number PBS-1
https://think-plc.com/web/image/product.template/329522/image_1920?unique=21694e0

Emergency Stop Station

Part number: PBS-1  |  Drawing D10042  |  Think-PLC Ready-Set-Go Series

A pre-wired, labelled and tested emergency stop station built on Siemens SIRIUS ACT 3SU pilot devices in a Saginaw 1PBGX painted steel enclosure. A 40 mm illuminated red mushroom head with a yellow EMERGENCY STOP backing plate drives two independent normally-closed contact modules, so the station drops straight into a dual-channel safety circuit without rework.

Every field connection lands on one M12 8-pin A-coded male bulkhead with a 3.2 ft pigtail — both N.C. channels, the 24 V red LED and ground — so the station mounts to a machine with a single cable and no panel wiring. Each unit ships with the customer drawing package it was built from: schematic, model view, cable diagram and bill of material.

Specifications

  • Enclosure: Saginaw 1PBGX painted steel, indoor/outdoor rated, integral mounting feet
  • Dimensions: 3-9/16 in × 4-5/8 in × 5-1/2 in (90.5 × 117.5 × 139.9 mm)
  • Operator: Siemens 3SU1051-1HB20-0AA0, illuminated 40 mm red mushroom, positive latching, rotate-to-unlatch
  • Safety contacts: (2) 1 N.C. contact modules — dual channel
  • Indication: 24 V AC/DC red LED module
  • Field connection: M12 8-pin male, A-coded bulkhead, 3.2 ft pigtail
  • Documentation: customer drawing package (schematic, model view, cable diagram, BOM)
  • Designed, built and tested in Lexington, NC, USA

Ordering: Standard configurations are available for direct online purchase. For purchase orders, custom modifications or application support, contact THINK-PLC to configure the solution to your requirements.

Freight is billed separately and is not included at checkout. We will contact you after your order with a freight quote and delivery options; shipment is scheduled after approval. All products are made to order and lead times vary with specification and order volume.

$ 354.04 354.04 USD $ 354.04 Tax Excluded

Call for price

This combination does not exist.

Built in the USA 3 Year Warranty
