Slide-on 304 stainless covers that convert SINAMICS G120C, PM240-2 / PM240P-2 and G120X chassis drives to UL Type 1 / NEMA 1 wall-mount installs — eight frame sizes, louvered airflow, conduit-ready wiring entries, no full enclosure required.
304 stainless steelCorrosion-resistant covers that live happily next to washdown zones. No paint to chip.
Type 1 / NEMA 1 constructionDesigned to UL Type 1 requirements for general-purpose indoor installations.
Louvered ventilationSlot patterns sized to the drive's own cooling path, top and bottom.
Conduit-ready entriesKnockout zones top and bottom for line, motor and control wiring.
Keyhole wall mountingHang the back panel, drop the drive on, torque and close.
Two-piece + hardwareFront cover removes with M4 stainless screws for service access.

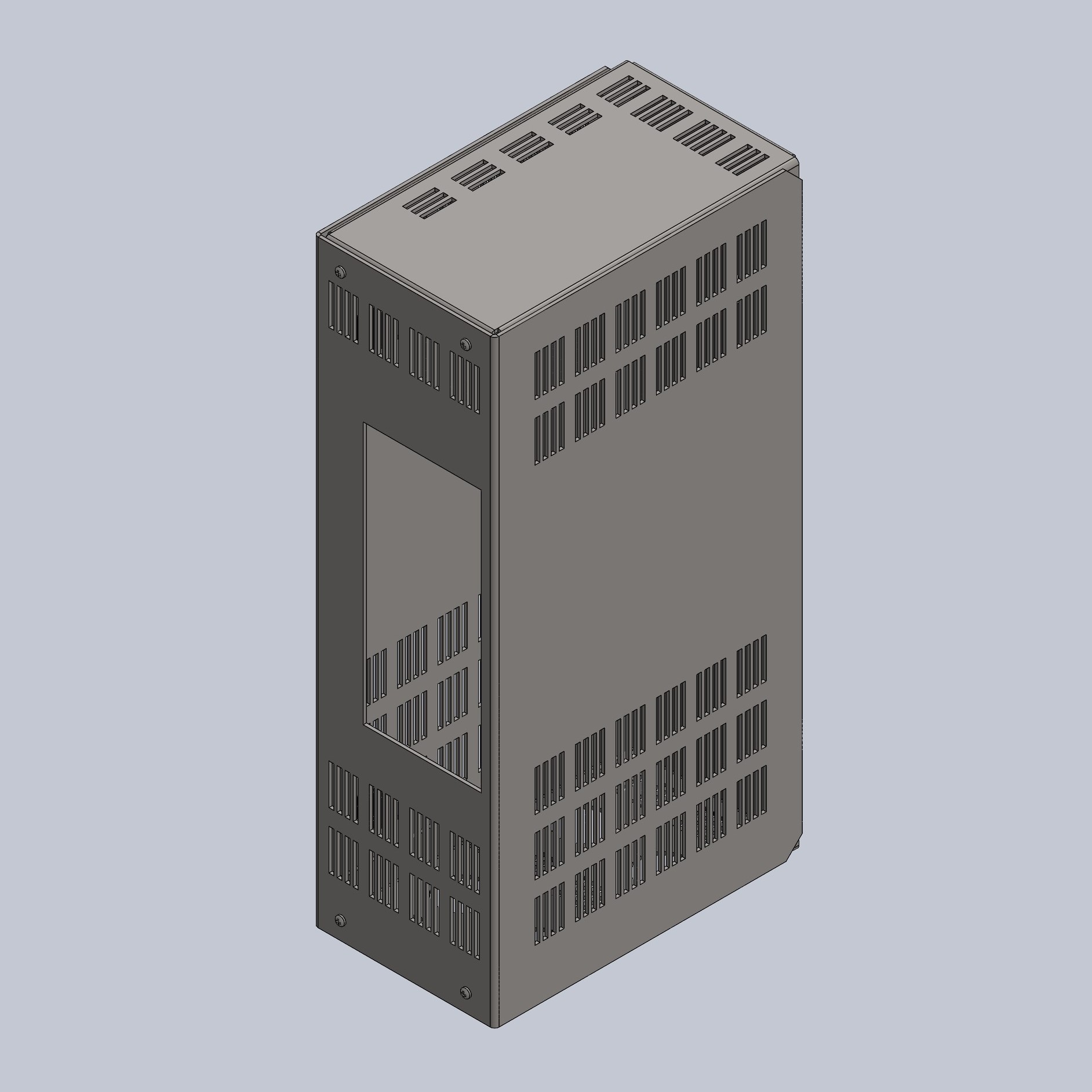

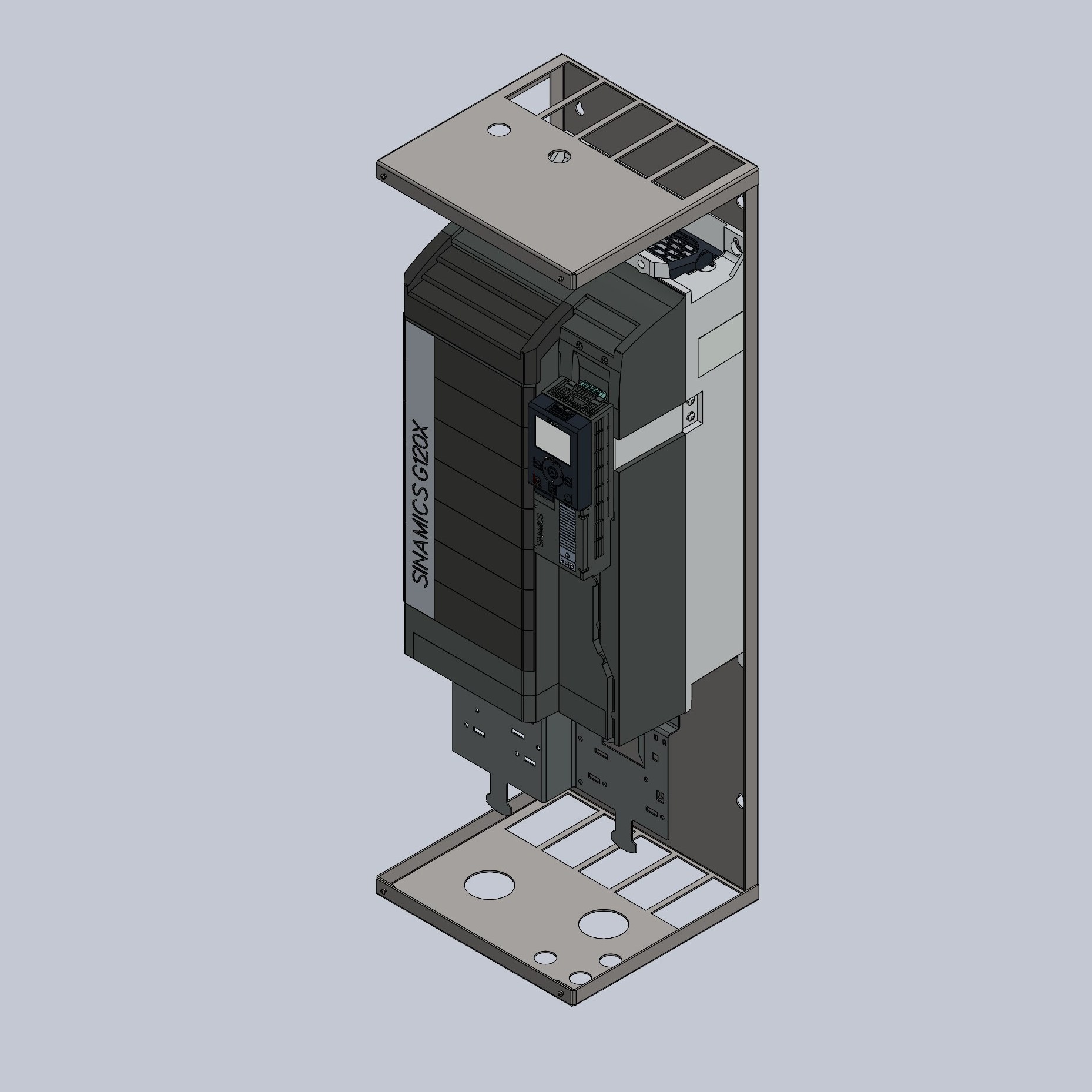

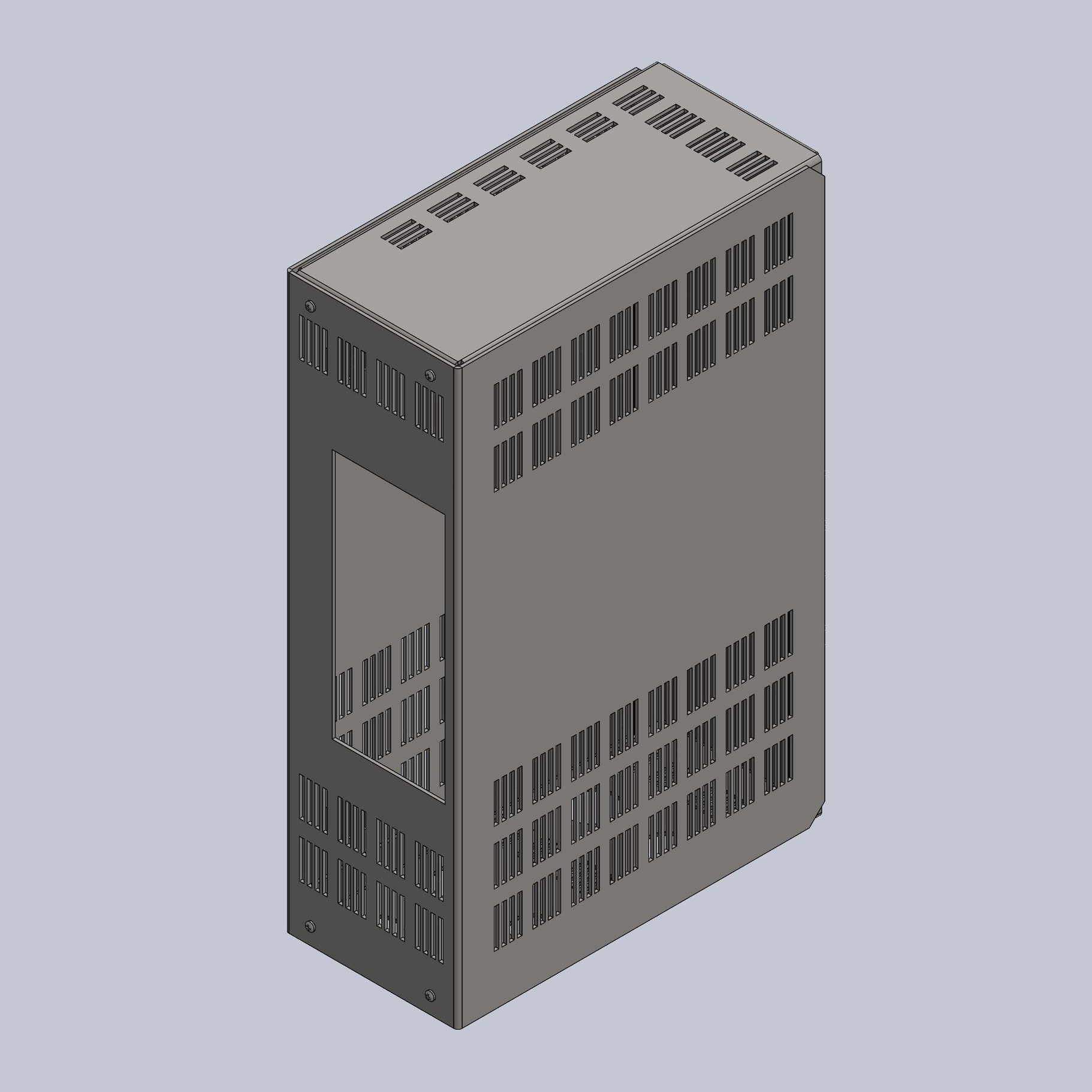

UL1-KIT-FSAA — G120C FSAA fully shrouded, louvered front coverUL1-KIT-G120X-FSE — conduit plates and drive in placeUL1-KIT-FSB-C — G120C FSB, conduit knockouts below
Orbit it in 3D
UL1-KIT-FSAA with a SINAMICS G120C FSAA drive inside — drag to orbit, scroll to zoom.
At a glance
UL1-KIT-FSAA
Fits SINAMICS G120C frame FSAA. Two-piece kit (front cover + back cover) with M4 hardware.

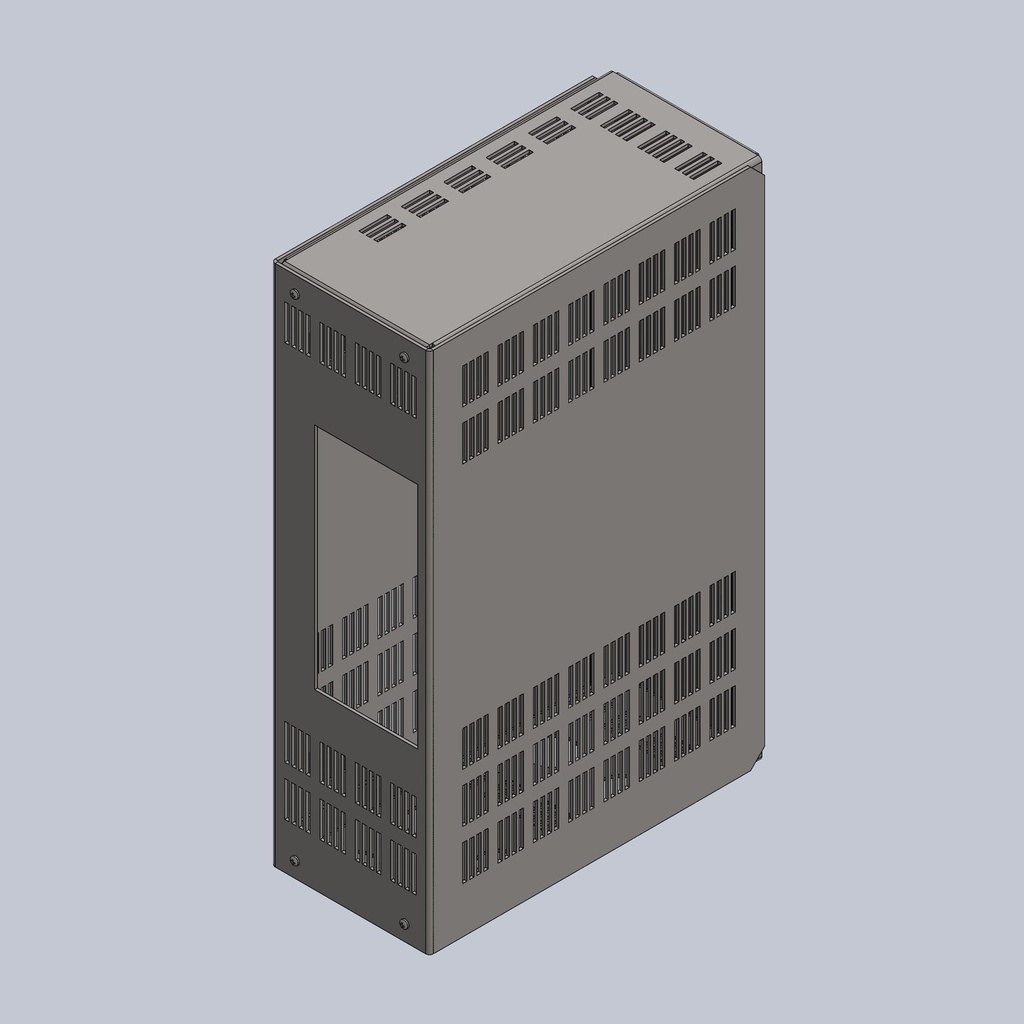

UL1-KIT-FSA
Fits SINAMICS G120C FSA and SINAMICS PM240-2 FSA. Two-piece kit with M4 hardware.
UL1-KIT-FSB-C
Fits SINAMICS G120C frame FSB. Two-piece kit with M4 hardware.
UL1-KIT-FSB-P
Fits SINAMICS PM240-2 frame FSB. Two-piece kit with M4 hardware. Dimensioned cut sheet in release.
UL1-KIT-FSC-C
Fits SINAMICS G120C frame FSC. Two-piece kit with M4 hardware. Dimensioned cut sheet in release.
UL1-KIT-FSC-P
Fits SINAMICS PM240-2 frame FSC. Two-piece kit with M4 hardware. Dimensioned cut sheet in release.

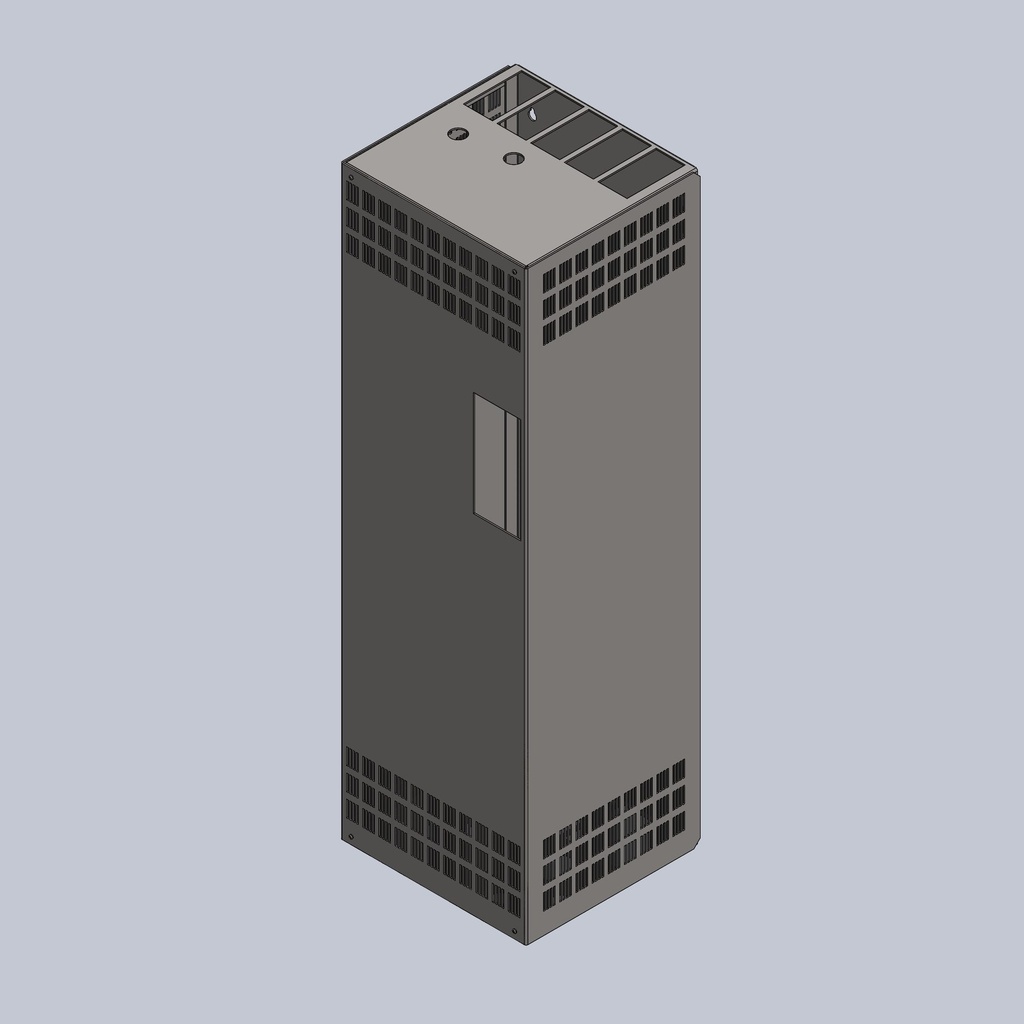

UL1-KIT-FSE
Fits SINAMICS G120C, PM240-2 and PM240P-2 frame FSE (275 mm chassis). Front cover + full-length back cover with M4 hardware.

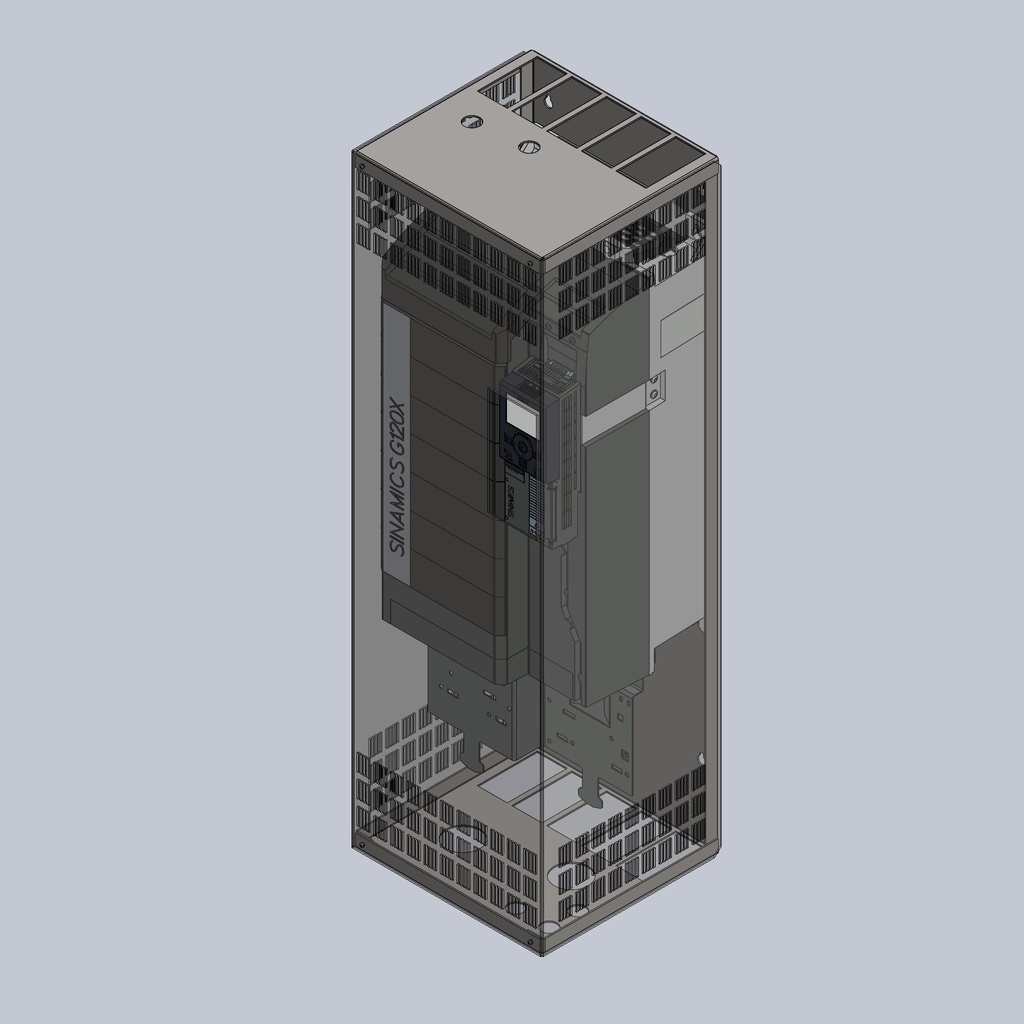

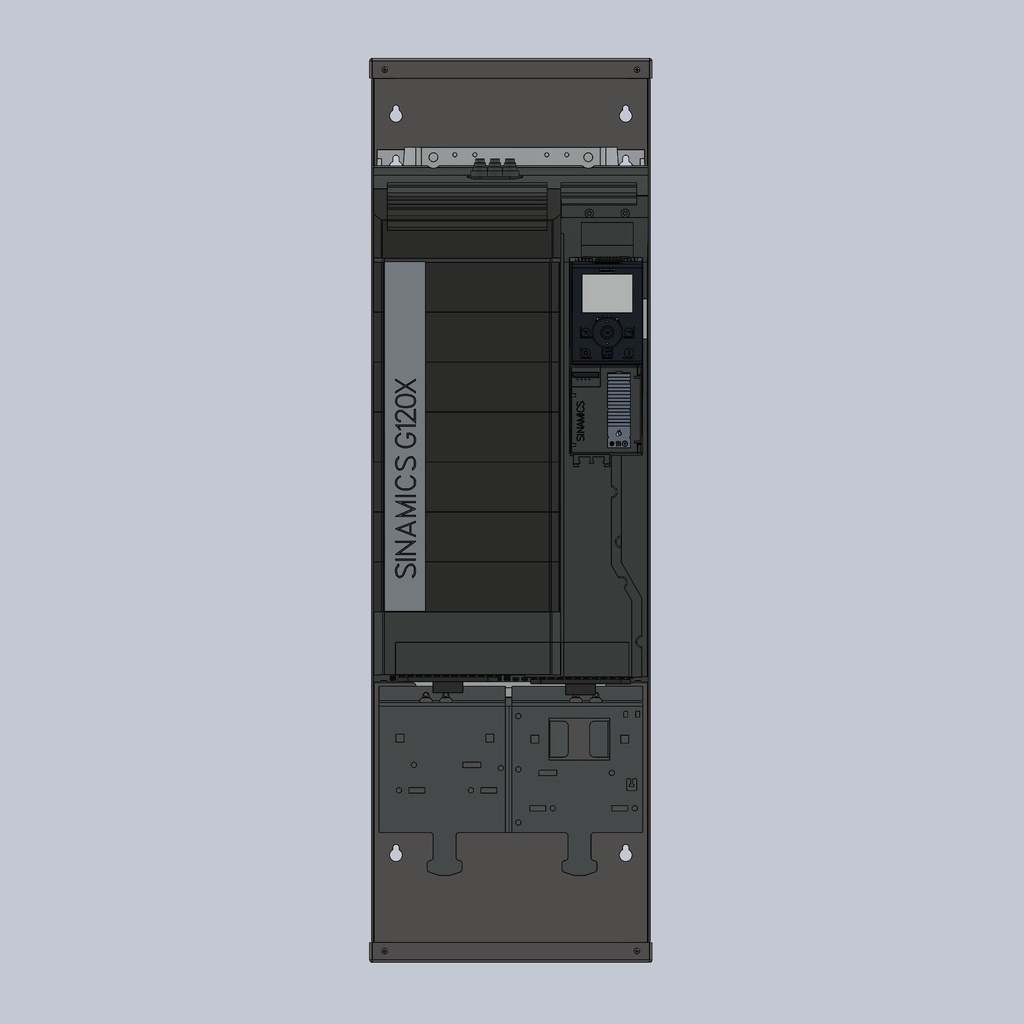

UL1-KIT-G120X-FSE
Fits SINAMICS G120X frame FSE (275 mm chassis, 230 mm keyhole pattern); cover set derived from our PM240-2 / PM240P-2 FSE covers. Front cover 905 mm H × 302 mm face — verify against the dimensioned drawing before ordering.
Material
304 stainless sheet, deburred, broken edges; bend radii per drawing.
Rating
UL Type 1 / NEMA 1 construction — indoor, general purpose.
Mounting
Keyhole slots for wall fasteners; the drive mounts to the kit back panel.
Documentation
Dimensioned PDF drawings and 3D STEP models under Downloads; FSB / FSC cut sheets are in release.
Formed in our Winston-Salem panel shop
Cut, formed and finished by the same UL 508A shop that builds our control panels. Need a different frame, gauge or entry layout? We cut customs from the same templates — sales@think-plc.com.
These frames are modeled and orderable now; dimensioned cut sheets are being released. Need one today? sales@think-plc.com.
Think-PLC design. Not manufactured by or affiliated with Siemens; SINAMICS is a registered trademark of Siemens AG. Kits provide Type 1 (NEMA 1) construction for general-purpose indoor use — the overall installation rating is determined by the installer.
