LL-4X-S71200

S7-1200
Micro Box

A bolt-in control workhorse for real-world equipment environments. A compact, fully engineered UL 508A industrial control panel that delivers Siemens S7-1200 control in a weather-tight Type 4X package — ready to mount, wire and run. Built for pumps, doors and process skids, and available with lead/lag pump logic already loaded and tested.

  • Siemens S7-1200 G2, CPU 1212CDC/DC/DC with expansion I/O
  • SIMATIC KTP400 Basic HMIdoor mounted
  • Lead/lag pump logicpre-loaded and tested
  • Voltage-free relay outputsswitch any voltage to 250 V AC/DC
  • PROFINET and Modbus TCPoptional Ewon remote access
  • Built to UL 508Aand NFPA 79 practice

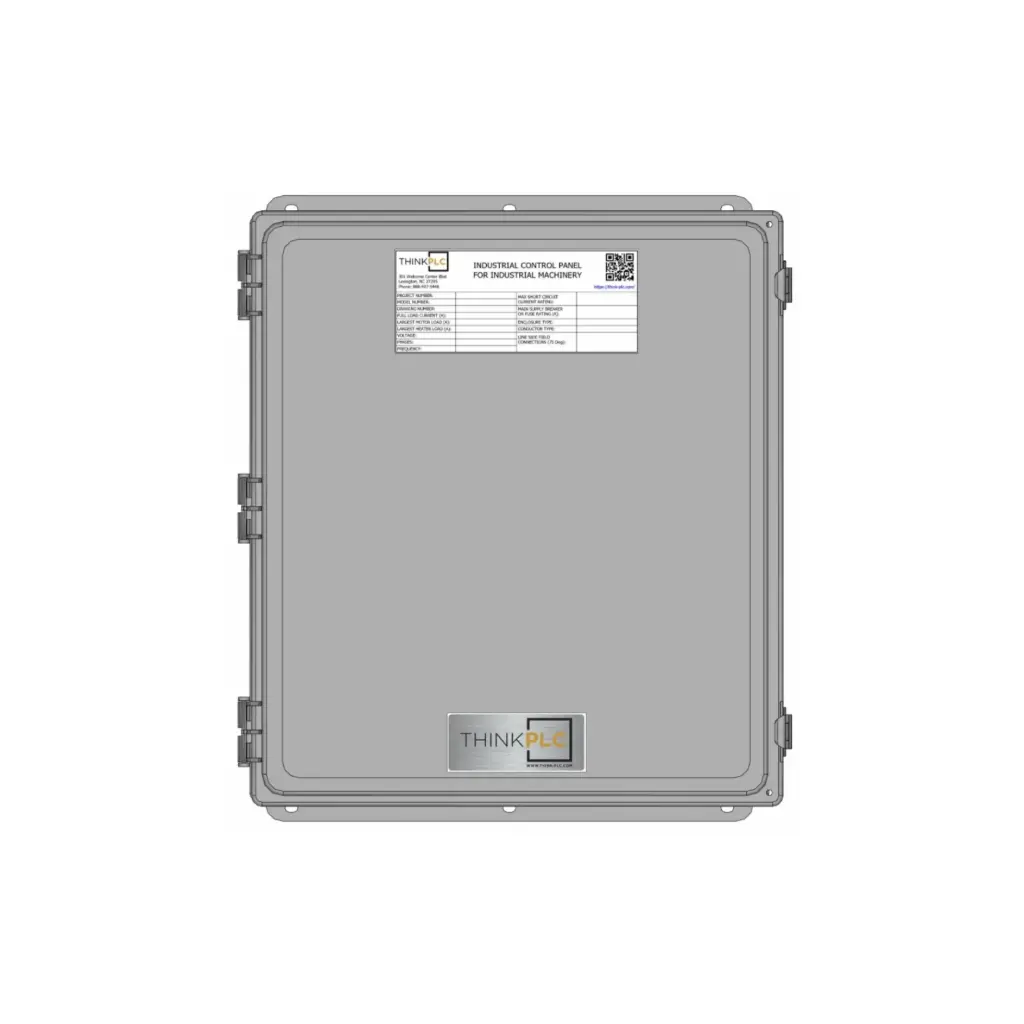

S7-1200 Micro Box, Type 4X enclosure exterior with industrial control panel nameplate
Exterior
Internal layout showing the door-mounted HMI, S7-1200 PLC, power supply, terminal blocks and remote access router
Internal layout

At a glance

ModelLL-4X-S71200
Input power120 VAC, 1-phase, 60 Hz
Full load current4 A max
Main protection10 A UL 489, 14 kA
Control power24 VDC, 5 A SITOP PSU4200
SCCR5 kA
PLCS7-1200 G2, CPU 1212C DC/DC/DC
HMISIMATIC KTP400 Basic
Digital I/O24 DI, 22 DO
Analog input4 AI, SB 1231
Device outputs7 dry SPDT contacts, 250 V AC/DC, 6 A
CommunicationsPROFINET / Modbus TCP/IP
Remote accessEwon Flexy 205 (option)
ThermalMoisture monitoring and heating
EnclosureUL Type 4, 4X, 12, 13 · IP66
CertificationUL 508A
Weight35 lb
OriginMade in USA
Pre-engineeredand pre-wired
Logic pre-loadedno startup programming
Type 4X buildwash-down and outdoor
Secure remote accessoptional Ewon router
Backed by THINK-PLCsupport

Documentation and downloads

Free training included S7-1200 Micro Box — Installation, Commissioning and Operation Seven sections, 14 lessons, about 2½ hours. Covers installation, first power-up, the KTP400 interface, lead/lag configuration, remote access and maintenance. Free, no purchase required. Start the course →
Data sheet Specifications, key features, standard lead/lag control logic and configuration options. PDF · 2 pages Drawing package Schematics, I/O list and terminal assignments. Supplied with every unit; sample available before order. PDF · available on request
  1. All Products
  2. Packaged Controllers
  3. S71200 Micro Box
35% Markup

S71200 Micro Box

https://think-plc.com/web/image/product.template/329520/image_1920?unique=8937cae

S7-1200 “Micro Box”

Model: LL-4X-S71200

The THINK-PLC S7-1200 Micro Box is a bolt-in control workhorse built for real-world equipment environments. Designed as a compact, fully engineered, UL508A Industrial Control Panel, this pre-configured enclosure delivers powerful PLC control in a weather-tight Type 4X package.

Whether you are managing pumps, doors, or process skids, this system is ready to mount, wire, and run.

Ordering: Standard configurations are available for direct online purchase. For purchase orders, custom modifications or application support, contact THINK-PLC to configure the solution to your requirements.

Freight is billed separately and is not included at checkout. We will contact you after your order with a freight quote and delivery options; shipment is scheduled after approval. All products are made to order and lead times vary with specification and order volume.

$ 15,134.09 15134.09 USD $ 15,134.09 Tax Excluded

Call for price

  • Remote Access Device
  • Lead/Lag Software

This combination does not exist.

UL 508A 3 Year Warranty
