Pinout - X10 Upper User
10-pin connector, Light Gray, Type-B coding key. Odd pins on the upper row, even pins on the lower row, as numbered in the Siemens S7-1200 G2 system manual (Section A.8.2). 8 of 10 positions are wired.
| Pin | Signal | Wire color |
|---|---|---|
| 1 | AQ 0 | blue |
| 2 | 0M | white/blue |
| 3 | AQ 1 | blue |
| 4 | 1M | white/blue |
| 5 | AQ 2 | blue |
| 6 | 2M | white/blue |
| 7 | AQ 3 | blue |
| 8 | 3M | white/blue |
| 9 | not populated | |
| 10 | not populated |
Wire colors per NFPA 79 / UL 508A: black AC line, white AC neutral, green/yellow ground, blue DC, white/blue DC common, red relay contacts (assumed AC-switched - tell us if they switch DC).
Part number system
TPC-6ES7232-4HF50-0XB0-X10-1M-20AWG
- TPC - Think-PLC pre-fabricated connector harness
- 6ES7232-4HF50-0XB0 - Siemens order number of the SM 1232 AQ 8x14bit
- X10 - Upper User
- 1M / 2M / 3M - lead length in meters
- 18AWG / 20AWG - conductor size
What is in the bag
- G2 push-in connector, 10 positions, light gray, Type-B keyed
- 8 x UL 1015 MTW conductors, chosen length and gauge
- Insulated ferrules both ends
- Printed signal-name sleeves both ends
- Spiral-wrapped bundle, 100% continuity tested
- Bag label with the full part number

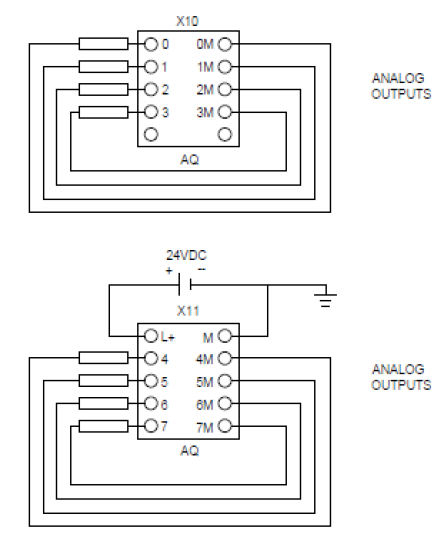

Siemens wiring diagram
%20(1%20m%20-%2018%20AWG)?unique=0300852)
%20(1%20m%20-%2018%20AWG)?unique=0300852)

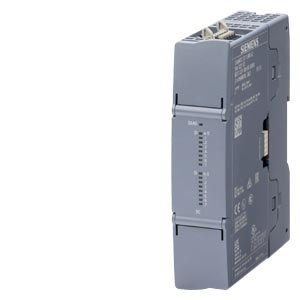

S7-1200 G2 Wiring Harness - SM 1232 AQ 8x14bit - X10 Upper User (10-pin)
Plug in, land the ferrules, done. This harness fits the X10 terminal of the SM 1232 AQ 8x14bit and no other: the G2 connector matches the Siemens connector color and coding key. Every populated position carries a UL 1015 MTW conductor with an insulated ferrule and a printed signal-name sleeve at both ends.
Part number: TPC-6ES7232-4HF50-0XB0-X10-length-gauge. Built to order in Winston-Salem, ships in 3-5 business days. Configure a whole rack at once with the S7-1200 G2 Harness Configurator.
