RIO-WM-SIE-••-4X

Remote I/O Panel
ET 200SP, Type 4X

A wired, labelled and tested SIMATIC ET 200SP remote I/O station in a Type 4X fiberglass enclosure. The panel arrives complete with its 120 VAC feed, disconnect, 24 V generation and distribution, PROFINET switch and interface module, and empty rail for the I/O modules your application needs. Choose the fill; the infrastructure is already done.

  • 16 or 28 module slotsRail, duct and enclosure sized for the fill, on an IM that carries up to 32
  • PROFINET, switched on boardIM 155-6PN ST with BA 2×RJ45 and a SCALANCE XC208 in the same box
  • Eight protected 24 V channelsSITOP PSU4200 10 A into a SEL1200 with individually settable trip points
  • Type 4X, washdown ratedFiberglass with quarter-turn latches and an aluminium subplate
  • Fail-safe readyPROFIsafe F-DI, F-DQ and relay output modules drop straight onto the rail
  • Documented as builtSchematics, backpan layout, terminal schedule and connection list ship with it
Backpan layout of the remote I/O panel showing the ET 200SP rack, SCALANCE XC208 switch, SITOP power supply and distribution module, and field terminal rows
RIO-WM-SIE-28-4X · backpan with a representative 28-module fill

At a glance

Part numberRIO-WM-SIE-[16|28]-4X
I/O systemSIMATIC ET 200SP, IM 155-6PN ST with BusAdapter BA 2×RJ45; the interface module supports up to 32 I/O modules
Rack capacity16 or 28 I/O module slots, with server module fitted and rail terminated
NetworkSCALANCE XC208 managed Layer 2 switch, 8 × 10/100 RJ45, patched to the interface module
Supply120 VAC, 1 Ph, 60 Hz; 4.3 A full load current on the reference build
DisconnectDoor-mounted rotary handle with defeat, 16 A, 3-pole
Branch protectionSiemens 5SJ4116-8HG42, 16 A, 1-pole, D curve, 10 kA, UL 489
24 V generationSITOP PSU4200, 1-phase in, 24 V/10 A out, adjustable 24–28 V
24 V distributionSITOP SEL1200, eight independently protected 24 V channels up to 10 A each, with a Phoenix Contact PTFIX 18-way distribution block
Incoming terminalsPhoenix Contact PT 4-QUATTRO push-in; 24–10 AWG, one wire per phase, 75 °C
GroundingMechanical ground bar kit, 10 connections, 14–4 AWG; PE lug rated 14–1/0 AWG
Short circuit rating5 kA, with a 16 A upstream supply breaker or fuse

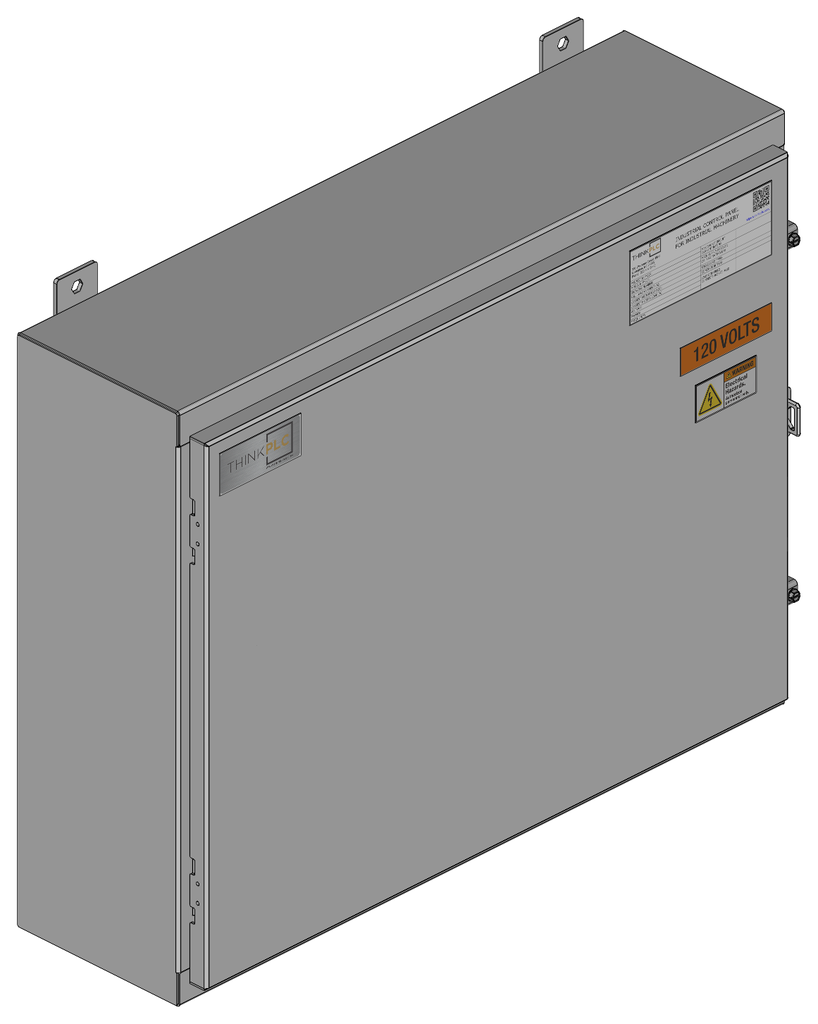

EnclosureType 4X fiberglass, quarter-turn latches, aluminium subplate; 24″ × 20″ × 11″ for 16 slots, 24″ × 24″ × 11″ for 28
Wiring practiceNFPA 79 as a design guideline, 90 °C conductors minimum, every conductor labelled both ends
ListingBuilt as a UL 508A industrial control panel and supplied with a numbered UL listed label
I/O modulesQuoted per application — digital, analog, IO-Link and PROFIsafe modules are all carried on the same rail
Supplied withSchematic set, backpan layout, bill of material, connection list and terminal schedules
WarrantyThree years

Configuration

Rack capacity 16 / 28

How many ET 200SP module slots the rail, duct and enclosure are laid out for. The electrical infrastructure is identical either way.

  • 16 I/O module slotsRIO-WM-SIE-16-4X
  • 28 I/O module slotsRIO-WM-SIE-28-4X

What the slots take quoted per order

A representative 28-slot fill, from the reference build, gives 156 field points:

  • 16 fail-safe inputs2 × F-DI 8×24 VDC HF
  • 8 fail-safe outputs plus 2 relaysF-DQ 8×24 VDC and 2 × F-RQ
  • 64 digital inputs4 × DI 16×24 VDC ST
  • 24 digital outputs6 × DQ 4×24 VDC/2 A ST
  • 24 analog inputs6 × AI 4×I 2-/4-wire ST
  • 20 analog outputs4 × AQ 2×U/I HF and 3 × AQ 4×U/I ST

I/O modules and their BaseUnits are not included in the panel price. Tell us the point count and signal types and we will quote the fill against the slots you have.

One PROFINET dropSwitch on board, so the panel takes a single cable from the line
Room to growSpare slots stay wired and powered for the next phase
Washdown ratedType 4X fiberglass, corrosion resistant, gasketed door
Documented, not mysteriousSchematics, layout, BOM and terminal schedule ship with it
Three year warrantyEngineered, built and supported in North Carolina

Documentation and downloads

Schematic set and backpan layout Multi-line schematics for the 120 VAC and 24 VDC distribution, the switch, the rack overview and the backpan layout for your fill. PDF · available on request Terminal schedules and connection list Terminal line-up diagrams per block, the wire-numbered connection list and the PLC address overview as delivered. PDF · available on request Main PLC Chassis with Power Backup The S7-1500 controller these racks report to, with redundant supplies, UPS backup and a rack or wall-mount format. View the product →
