HMI-WM-SIE / HMI-PM-SIE
Siemens
HMI Station

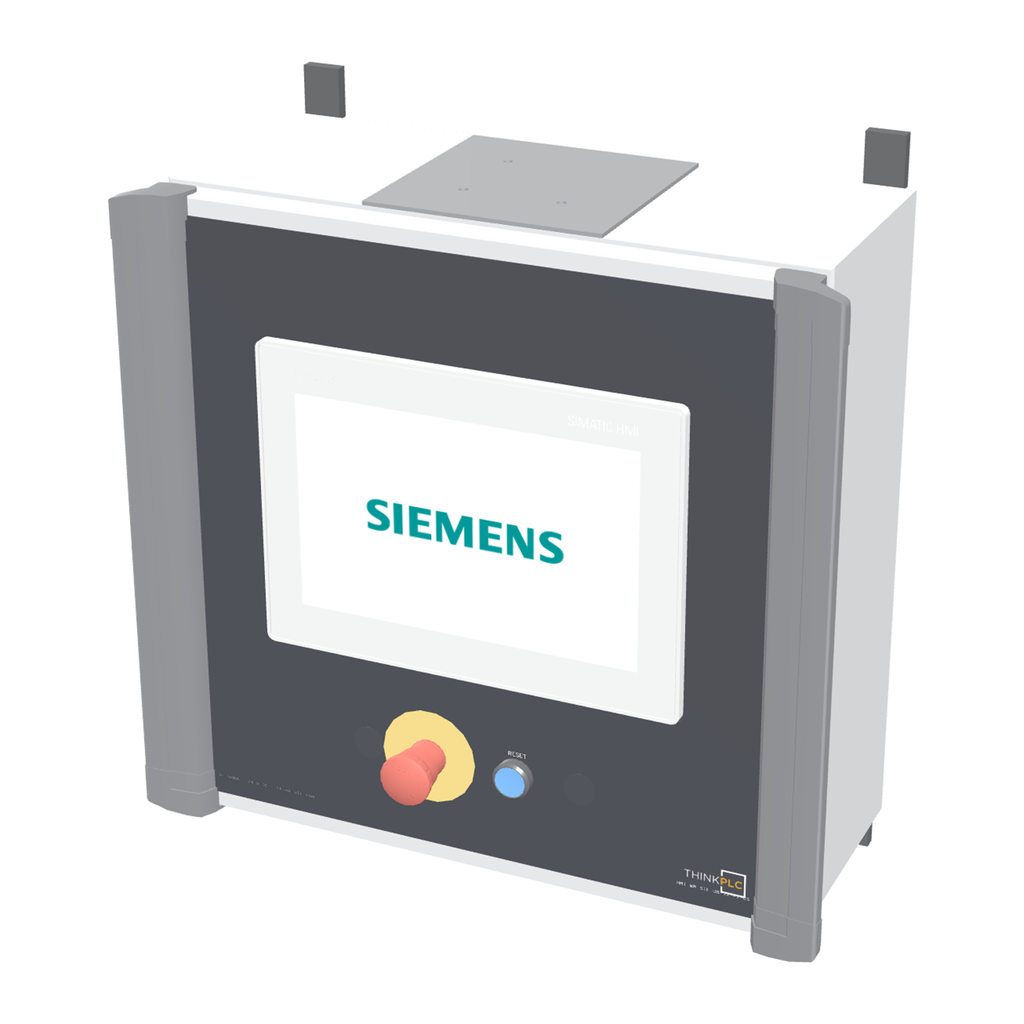

An operator station built around a SIMATIC Unified panel, configured on this page and released to a drawing. Nine screens across the Unified Basic and Unified Comfort families, in a powder-coated steel or 304 stainless operating housing with handle strip, wall-mounted or on a support arm. Choose no operators, E-Stop with Reset, or E-Stop with Reset, Start and Stop — hardwired or on PROFINET — add a signaling column, and see the exact build in 3D before you order. PROFINET and 24 V DC power are already run inside the housing: land your supply and your network cable and it is ready to commission. Built to UL 508A in North Carolina and supplied with the shop drawings and bill of material it was built from.
- Nine SIMATIC Unified sizes4″ to 19″, Unified Basic / Unified Comfort
- Operators to suitnone, E-Stop + Reset, or E-Stop + Reset / Start / Stop in keyed 22 mm cutouts
- Steel or 304 stainless housingoperating housing with handle strip, wall or support arm
- PROFINET and power pre-wiredland 24 V DC and PROFINET inside, then run
- Optional signaling column1 to 3 tiers, 24 V DC or IO-Link, on the PROFINET module outputs
- Short Ship: next business day7″ and 12″ Basic with E-Stop + Reset, built to UL 508A
Configure your station
Every choice below updates the 3D model, the Build ID, the specification and the ship list. Orbit the model with the mouse; the STEP file and datasheet under Downloads follow the build you configure.
Installation
Four bolts, one conduit each, running
- Bolt it to the wallFour M8 bolts through the pre-drilled rear, sealing washers included. No brackets to align.
- Open the frontThe handle strips release the front plate; everything you touch is on the mounting plate behind it.
- Connect your conduitTwo hubs in the bottom skin, one for power and one for the network. Nothing enters through the front.
- Pull in 24 V DCTwo conductors on the push-in terminals, +24 V and 0 V. Breaker, grounding and the panel supply are already wired.
- Pull in PROFINETOne cable to the bulkhead. The panel and the operators are already on the network inside.
- Close it and runThe panel boots and your project loads from TIA Portal. Typical time on site: under fifteen minutes.
Short Ship program
Two builds ship next business day
7″ or 12″ Unified Basic panel, E-Stop and blue Reset hardwired to terminals, no signaling column, steel wall-mount housing with the printed overlay, PROFINET and 24 V DC already run inside. Built ahead and on the shelf; everything else on this page is made to order.
Build ID
HMI-WM-SIE-UC-12-B4
loading 3D models…
housing overall
Panel series
Screen
Front finish
Housing material
Mounting
Operators
Printed black overlay covers the front plate to 12.7 mm from the edge: Think-PLC mark, part number, legends and the Ø60 yellow E-Stop ring. Operators sit in Ø22.3 mm keyed cutouts so they cannot rotate: E-Stop, then blue Reset at 70 mm, then green Start and red Stop at 50 mm pitch, the row centred between the HMI and the bottom edge. Positions you do not order are left uncut.
Operator wiring
Signaling column
Specification
Price on requestList price for this Build ID, built to order.
Think-PLC customer? Get a discount.Prices here are published list. Account customers and OEM partners get their pricing applied: log in before checkout, or request this configuration and mention your account.
Add to cart carries every option above onto the order line at this price. Request this configuration sends the same Build ID and spec to our contact form.
What ships
Field-ready inside the housing
PROFINET is already run from the panel (and from the PROFINET operator module when you choose it) to the field connection point, and the 24 V DC power wiring is already run to the field terminals. On site you land one 24 V DC supply and one PROFINET cable inside the box; nothing else has to be wired to make the station live.
Need custom holes?
Extra cutouts, a different operator layout, gland plates, a selector switch or legends of your own: reach out here and we will add them to your Build ID and to the released drawing.
At a glance
Build IDHMI-[WM|PM]-SIE-[UB|UC]-[size]-[E|P2|B4][-PN][-SL1..3][-BL]-[CS|SS]
Operator panelSIMATIC HMI Unified Basic or Unified Comfort
Screen sizes4, 7, 10, 12, 15, 19 in
MountingWall (WM) or support arm (PM); arm cutout blanked when wall-mounted
HousingOperating housing with handle strip, four sizes to suit the screen
MaterialPowder-coated sheet steel RAL 7035 (CS) or 304 stainless (SS)
Front overlayPrinted full-front overlay, textured black, white legends, yellow E-Stop ring; brandless option (BL)
OperatorsNone (E), E-Stop + Reset (P2), or E-Stop + Reset / Start / Stop (B4)
Operator cutoutsØ22.3 mm with anti-rotation key; unused positions left uncut
Operator wiringHardwired to terminals, or PROFINET interface module (PN)
Signaling columnOptional, 1 to 3 tiers, 24 V DC or IO-Link, top-mounted
Internal wiringPROFINET and 24 V DC pre-run; field lands one supply and one network cable
Control power24 V DC, field supplied
Field terminalsPush-in terminals with PE for 24 V DC and operator circuits
GroundingDoor-to-body ground strap fitted on every unit
Wall mounting kitIncluded with every wall-mount build
CertificationUL 508A
OriginBuilt in North Carolina, USA
Warranty3 years
Short ShipHMI-WM-SIE-UB-07-P2-CS and UB-12-P2-CS ship next business day
SupplyMade to order; drawing package, STEP model and datasheet included
Panel and operator options
Unified Basic UB
Touch operation, WinCC Unified Basic, PROFINET, 4″ to 12″.
- MTP400 Basic 4″6AV2123-3DB32-0AW0
- MTP700 Basic 7″6AV2123-3GB32-0AW0
- MTP1000 Basic 10″6AV2123-3KB32-0AW0
- MTP1200 Basic 12″6AV2123-3MB32-0AW0
Unified Comfort UC
Current generation, WinCC Unified, browser control panel and web client, 7″ to 19″.
- MTP700 7″6AV2128-3GB06-0AX0
- MTP1000 10″6AV2128-3KB06-0AX0
- MTP1200 12″6AV2128-3MB06-0AX0
- MTP1500 15″6AV2128-3QB06-0AX0
- MTP1900 19″6AV2128-3UB06-0AX0
Operators and options OPT
SIRIUS ACT 22 mm devices in keyed cutouts, legends printed on the overlay.
- E-Stoptwist-release mushroom, Ø60 yellow ring on the overlay
- Reset / Start / Stopilluminated push buttons, blue / green / red
- PROFINET operator module3SU1400-1LL10-3BA1, operators and column on one PROFINET node
- Signaling column8WD44, 1 to 3 tiers, 24 V DC or IO-Link
- Wall mountwall mounting kit and arm-cutout cover included
- Brandless overlayno logo or part number printed, on request
Documentation and downloads
Free training included Siemens HMI Station — Installation, Commissioning and Operation Seven sections, 18 lessons, about 3 hours 10 minutes. Covers reading the Build ID, choosing the panel family, mounting and field wiring, first power-up, setting the panel address, downloading from TIA Portal, backing up and restoring the runtime from a memory card, the E-Stop and push button circuits, and maintenance. Free, no purchase required. Start the course →
STEP model of this build
STEP AP214 of the configured station, assembled from the manufacturers' own models.
Datasheet
Housing sizes, panel cutouts, operator row, wiring options and the Build ID key for the selected panel series.
Drawing package
Shop and packing drawings for your Build ID: external and cutout details, connection list and bill of material. Supplied with every unit; sample available before order.
Custom holes and layouts
Need cutouts or operators this page does not offer? Reach out here with a sketch and we will quote it on the same housing.
