HMI-WM-AB

Allen-Bradley
HMI Enclosure

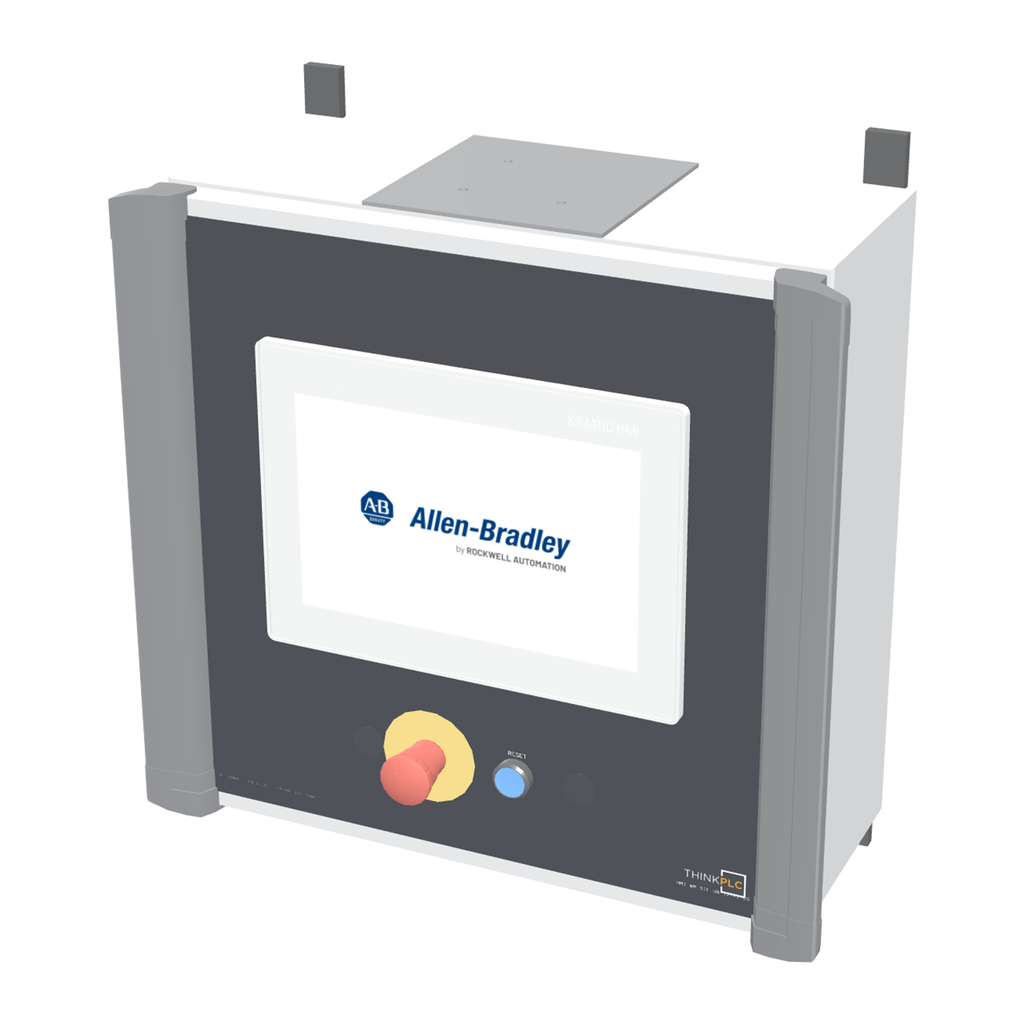

A wall-mount operator station, pre-engineered around a PanelView terminal and released to a drawing. PanelView Plus 7 and PanelView 5500 terminals from 7″ to 15″, in three door configurations — terminal only, terminal with E-Stop, or terminal with E-Stop and Start/Stop/Reset push buttons. Built to UL 508A in North Carolina, and mechanically identical to our Siemens station so a plant can standardise on one enclosure across both control platforms.

  • PanelView Plus 7 and 55007″ to 15″ touch terminals
  • Three door configurationsplain, E-Stop, or E-Stop with buttons
  • Saginaw EL wall-mount boxgalvanized subpanel, 2×2 duct
  • Two RJ45 bulkheadsnetwork the terminal without opening the door
  • 4 A UL 489 protection24 V DC, field supplied
  • Built to UL 508Anameplate and listing label fitted
B1 · terminal only
B2 · with E-Stop
B3 · E-Stop + Start / Stop / Reset

Door layouts shown schematically. Cutout positions and dimensions are given on the External cutout details sheet of the drawing package for your Build ID.

At a glance

Build IDHMI-WM-AB-[P5|P7]-[size]-[B1|B2|B3]
Operator terminalPanelView Plus 7 or PanelView 5500
Screen sizes7, 10, 12, 15 in
MountingWall mount
Enclosure, 7–12 inSaginaw SCE-16EL2006LP
Enclosure, 15 inSaginaw SCE-24EL3008LP
SubpanelGalvanized steel, sized to the box
Control power24 V DC, field supplied
Branch protection4 A UL 489 (1489-M1C040)
Field terminalsPhoenix Contact PT 2,5 push-in, with PE
Grounding5-position mechanical ground bar
Network2 × RJ45 bulkhead, 1 m Cat5 leads
Wire managementPanduit 2 × 2 in slotted duct
Pilot devicesNone, E-Stop, or E-Stop + Start/Stop/Reset
CertificationUL 508A
OriginBuilt in North Carolina, USA
Warranty3 years
SupplyMade to order, drawing package included

Terminal options

PanelView Plus 7 P7

Runs FactoryTalk View Machine Edition. Tag-based and controller-agnostic — the natural choice for a retrofit, or for a site already standardised on FactoryTalk View ME.

  • PanelView Plus 7 7″2711P-T7C22D9P
  • PanelView Plus 7 10″2711P-T10C22D9P
  • PanelView Plus 7 15″2711P-T15C22D9P

PanelView 5500 P5

Configured in Studio 5000 View Designer and paired directly with a Logix controller, referencing controller tags without a separate tag database. Choose this for new Logix machines.

  • PanelView 5500 12″2715-T12WD

A FactoryTalk View ME application does not port to a PanelView 5500, and a View Designer project does not run on a PanelView Plus 7. Settle the family before any screens get built. Other PanelView catalogue numbers can be fitted to the same enclosure on request.

Pre-engineeredreleased drawings and BOM
One enclosureRockwell or Siemens inside
Built to UL 508Alisted control panel
Built in the USANorth Carolina
3 year warrantyon every standard product

Documentation and downloads

Free training included Allen-Bradley HMI Station — Installation, Commissioning and Operation Six sections, 15 lessons, about 2 hours 40 minutes. Covers reading the Build ID, choosing between PanelView Plus 7 and PanelView 5500, mounting and field wiring, first power-up, setting the terminal address, loading the application, the E-Stop and push button circuits, and maintenance. Free, no purchase required. Start the course →
Drawing package Shop and packing drawings for your Build ID: external and cutout details, backpanel layout, connection list and bill of material. Supplied with every unit; sample available before order. PDF · available on request CAD models Enclosure and door models for layout and clearance checks, including cutout geometry for the terminal you select. STEP · available on request
  1. All Products
  2. All Products
  3. HMI Enclosure (Allen Bradley)
35% Markup
HMI Enclosure (Allen Bradley)

HMI Enclosure (Allen Bradley)

https://think-plc.com/web/image/product.template/330494/image_1920?unique=a227d21

Allen-Bradley HMI Enclosure

Build ID: HMI-WM-AB

The THINK-PLC Allen-Bradley HMI Enclosure is a wall-mount operator station, pre-engineered around a PanelView terminal and built to UL 508A. PanelView Plus 7 and PanelView 5500 terminals are offered from 7 to 15 inches, in three door configurations: terminal only, terminal with E-Stop, or terminal with E-Stop and Start, Stop and Reset push buttons.

The enclosure, breaker, terminals, grounding and network bulkheads are identical to our Siemens HMI Enclosure, so a plant can standardise on one station across both control platforms. Each unit is built to a released drawing and ships with the shop drawings and bill of material it was built from.

Ordering: Standard configurations are available for direct online purchase. For purchase orders, custom modifications or application support, contact THINK-PLC to configure the solution to your requirements. Other PanelView catalogue numbers can be fitted to the same enclosure on request.

Freight is billed separately and is not included at checkout. We will contact you after your order with a freight quote and delivery options; shipment is scheduled after approval. All products are made to order and lead times vary with specification and order volume.

$ 4,845.36 4845.36 USD $ 4,845.36 Tax Excluded

Call for price

  • Screen Size/Series
  • Build Configuration

This combination does not exist.

UL 508A Built in the USA 3 Year Warranty
