RUN-MY-ROBOT™

Spindle Control
Enclosure

A pre-engineered spindle control solution for SINUMERIK Run MyRobot systems. One PROFINET drop and one 24 VDC feed replace the umbilical back to the main cell enclosure — controlling one spindle through a DRIVE-CLiQ interface, an integrated valve system and Siemens I/O, while monitoring coolant flow, temperature and air pressure.

  • Controls one spindlewith DRIVE-CLiQ interface
  • Monitors coolant, air pressuretemperature and flow
  • Integrated valve systemfor tooling and cleaning
  • Pre-wired and testedready to install
  • Siemens ET 200SP I/Oover PROFINET
  • Designed to UL 508Aand NFPA 79 standards
Built in the USAAssembled, wired and tested by THINK-PLC
UL 508ABuilt to the industrial control panel standard

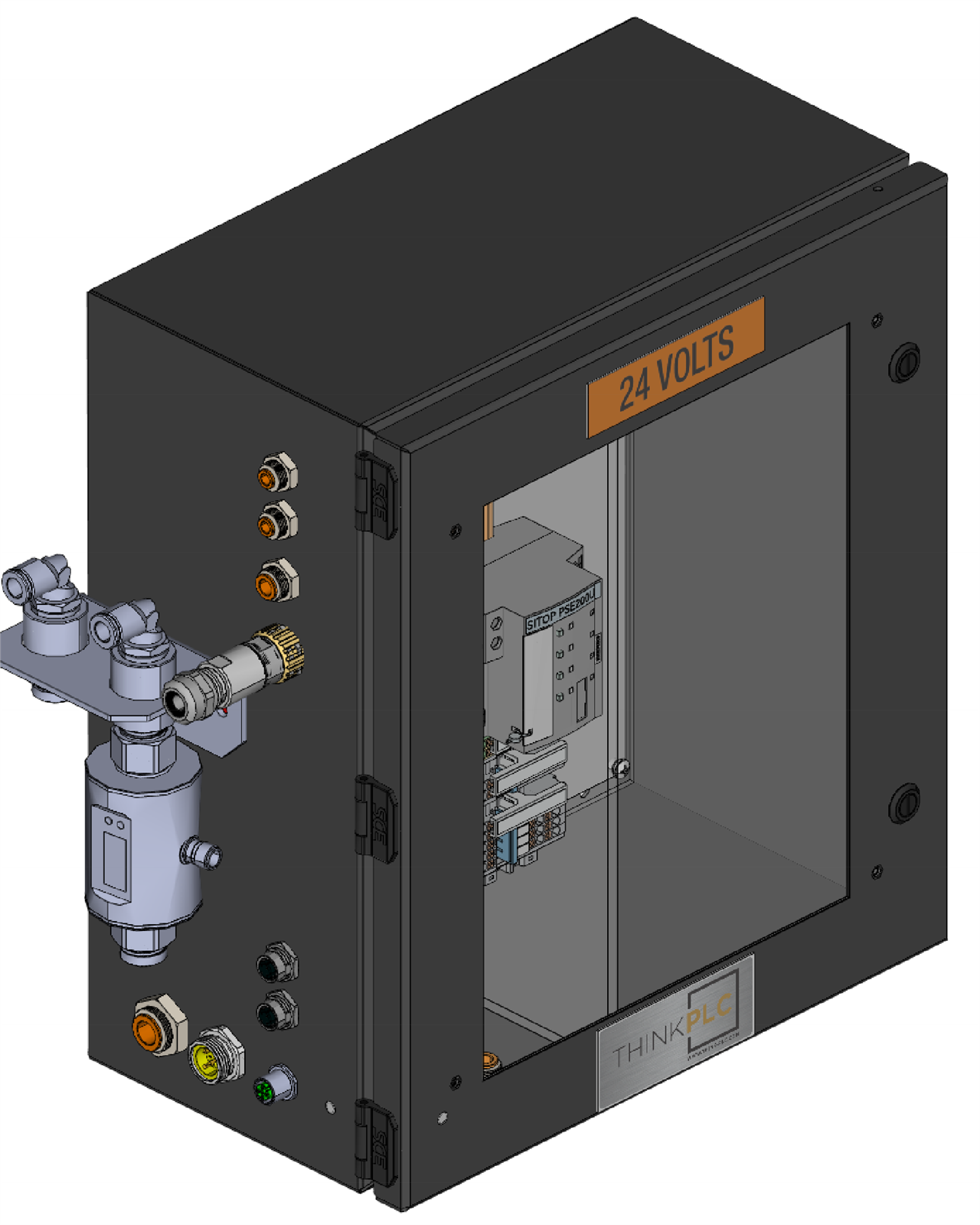

Spindle control enclosure, exterior isometric view
Exterior

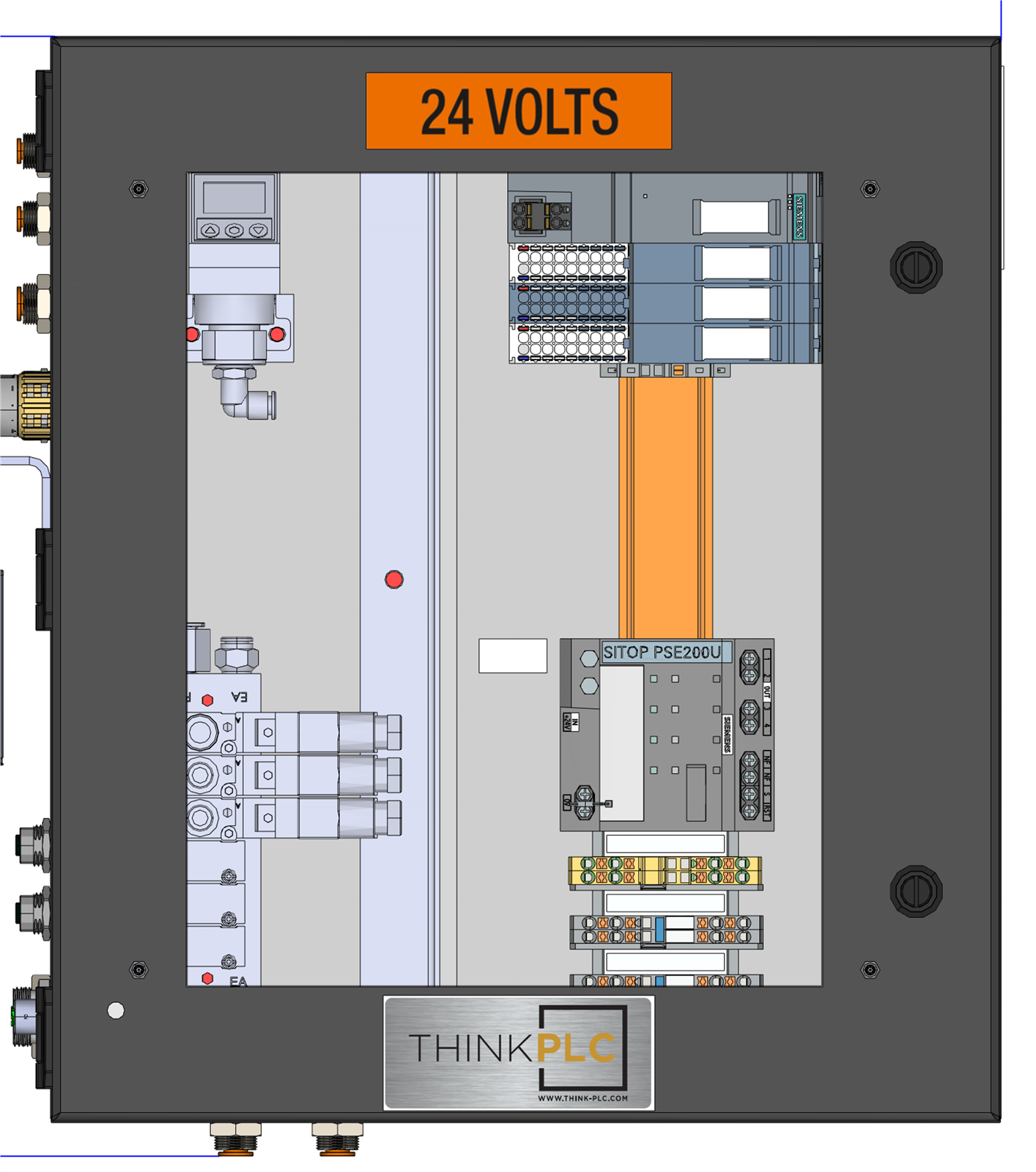

Front view with the door open showing the internal layout
Door open

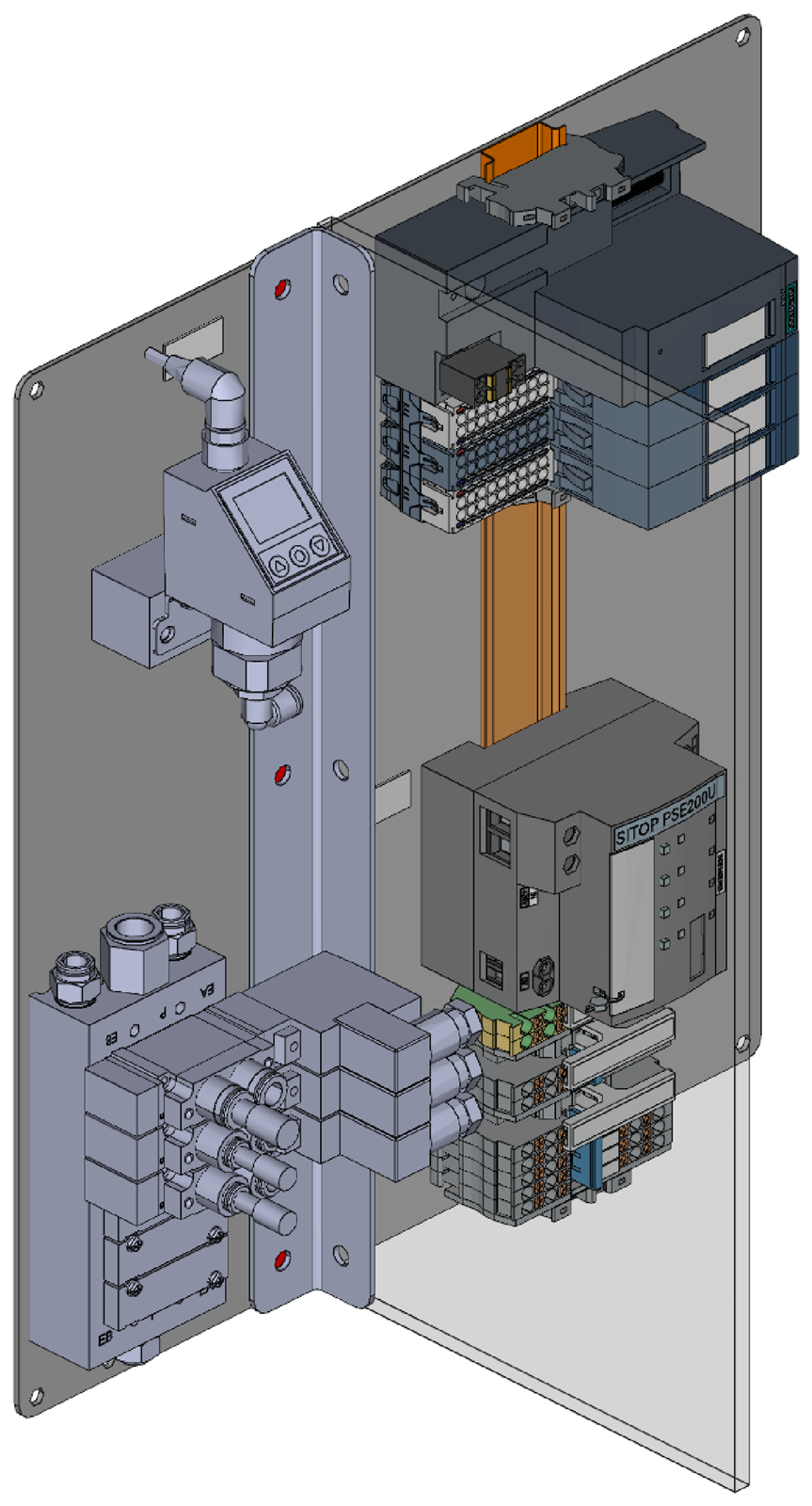

Subpanel assembly, isometric view
Subpanel assembly

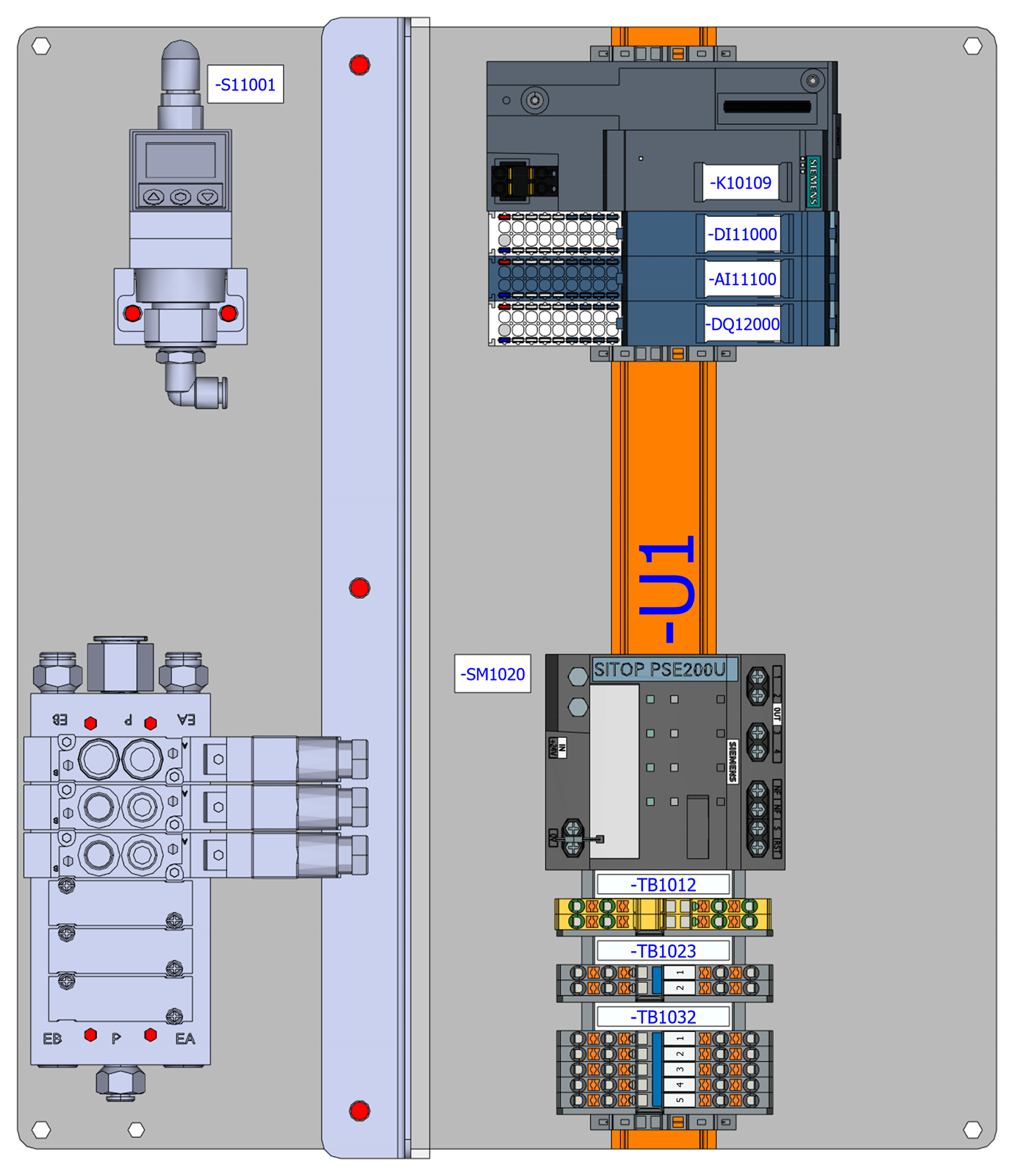

Subpanel component layout with device tags
Component layout

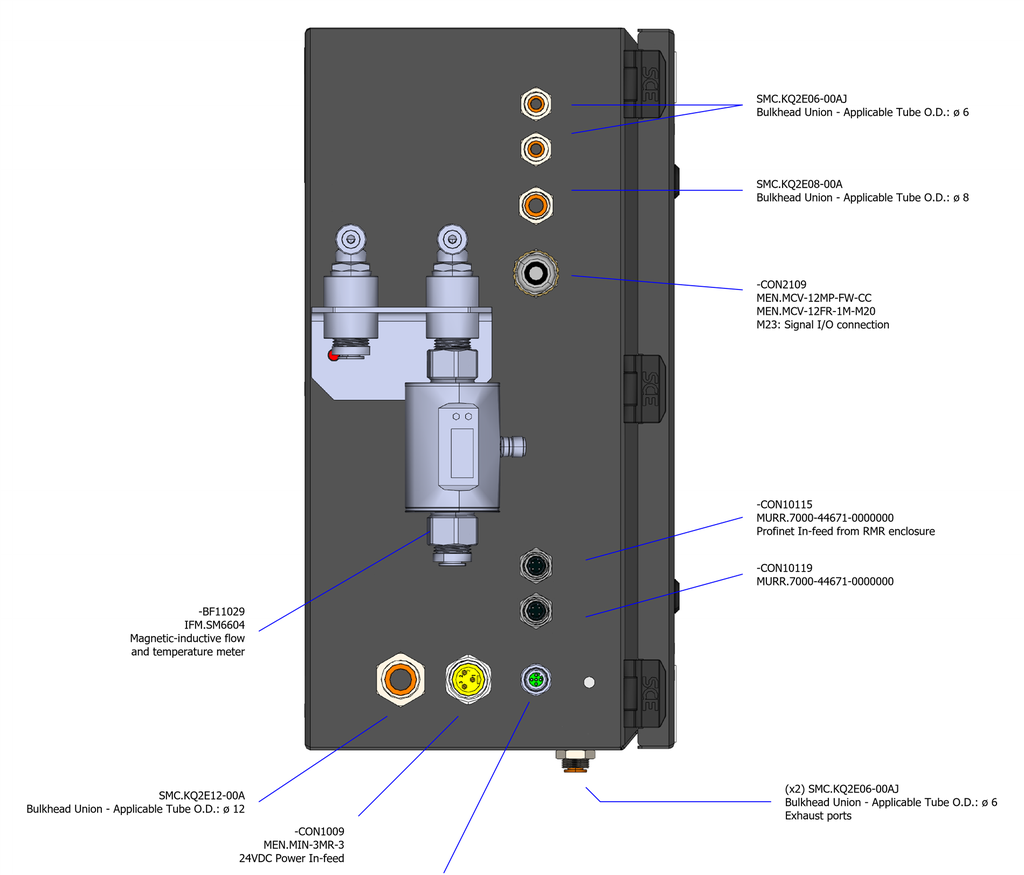

External M12, M23 and pneumatic bulkhead connections
External connections
Side view with the UL industrial control panel nameplate
UL nameplate

At a glance

Supply24 VDC, 6 A FLC
EnclosureType 3R, 5 kA SCCR
FieldbusPROFINET, 2 × M12 D-coded
Distributed I/OET 200SP · 16 DI, 4 AI, 4 DQ
Head moduleIM155-6PN Basic
EncoderSINAMICS SME120 + DRIVE-CLiQ
Field connectionsM12 / M23 bulkhead
StandardsUL 508A, NFPA 79 (2024)
AssemblyBuilt in the USA
Spare capacity5 DI, 2 AI, 1 DQ terminated
DrawingD10017 Rev 3
Pre-engineeredand pre-wired
Faster installationand commissioning
Reliable performancein demanding environments
Built for SINUMERIK Run MyRobotmachining cells
Backed by THINK-PLCsupport

Documentation and downloads

Data sheet Specifications, key features, full I/O assignment, external connections and spindle service requirements. PDF · 2 pages Technical drawing package Schematics, connection list, cable diagrams, model views and summarised parts list. D10017 Rev 3. PDF · 22 pages · 2.6 MB 3D CAD model STEP model of the enclosure and subpanel assembly for cell layout and clearance checks. STEP · available on request
  1. All Products
  2. All Products
  3. SINUMERIK Run MyRobot Spindle Control Enclosure
35% Markup

SINUMERIK Run MyRobot Spindle Control Enclosure

Part Number SRMR-KIT-01-CN60-E01
https://think-plc.com/web/image/product.template/330902/image_1920?unique=8937cae

Run-My-Robot™ Optional Spindle Control Enclosure

Add a fully integrated spindle package to your Run-My-Robot system with the THINK-PLC Run-My-Robot™ Spindle Control Enclosure. This pre-engineered, pre-wired enclosure provides the spindle-side controls, I/O, pneumatic valve control, instrumentation, and DRIVE-CLiQ interface required to integrate a single electrospindle into a Run-My-Robot machining cell.

Designed as an optional companion to the main Run-My-Robot control system, the enclosure uses Siemens SIMATIC ET 200SP distributed I/O over PROFINET and a SINAMICS SME120 Sensor Module External for direct DRIVE-CLiQ spindle encoder integration. The result is a standardized spindle interface that reduces engineering, field wiring, and commissioning time when adding robotic machining capability.

Compatibility: Engineered around a single Hiteco HX-13/7 series electrospindle configuration. Final spindle, drive, motor, cooling, pneumatic, and application compatibility should be verified by THINK-PLC prior to order.

$ 6,995.00 6995.0 USD $ 6,995.00 Tax Excluded

Call for price

This combination does not exist.

UL 508A Built in the USA 3 Year Warranty
