PLC-••-SIE-••••-U1

Main PLC Chassis
with Power Backup

A complete SIMATIC S7-1500 control chassis on a 10U 19-inch rack panel, or in a Type 12 wall-mount enclosure. Two SITOP PSU4200 supplies feed a redundancy module, a 300 ms buffer and a UPS1600 with battery, so the controller and the network switch ride through a supply dip without a restart. A SCALANCE XC208 managed switch gives the panel eight ports for the plant network.

  • Redundant 24 V supplyTwo PSU4200 5 A units into a SITOP PSE202U redundancy module
  • Buffered and battery backedBUF1200 holds 40 A for 300 ms; UPS1600 and BAT1600 carry the outage
  • Eight-port managed switchSCALANCE XC208 on the DIN rail, wired to the CPU and out to the plant
  • Fits a 19-inch rack10U adjustable-depth rackmount DIN panel, 17⅝″ of usable rail
  • Standard or fail-safeEight CPUs from the 1511-1 PN to the 1518F-4 PN/DP
  • Selective 24 V distributionSEL1200 splits the bus into four independently protected 10 A channels

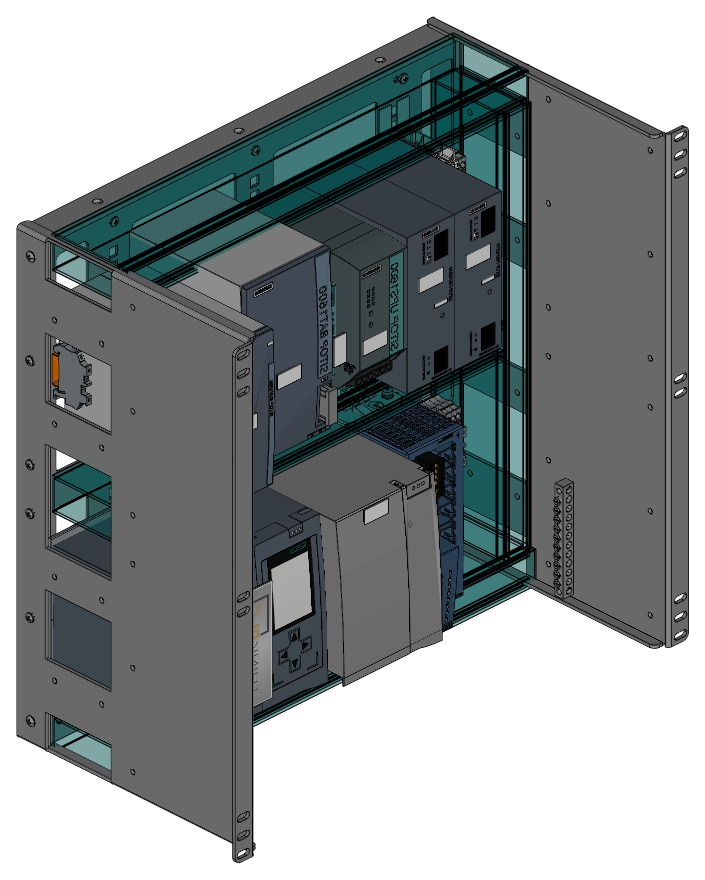

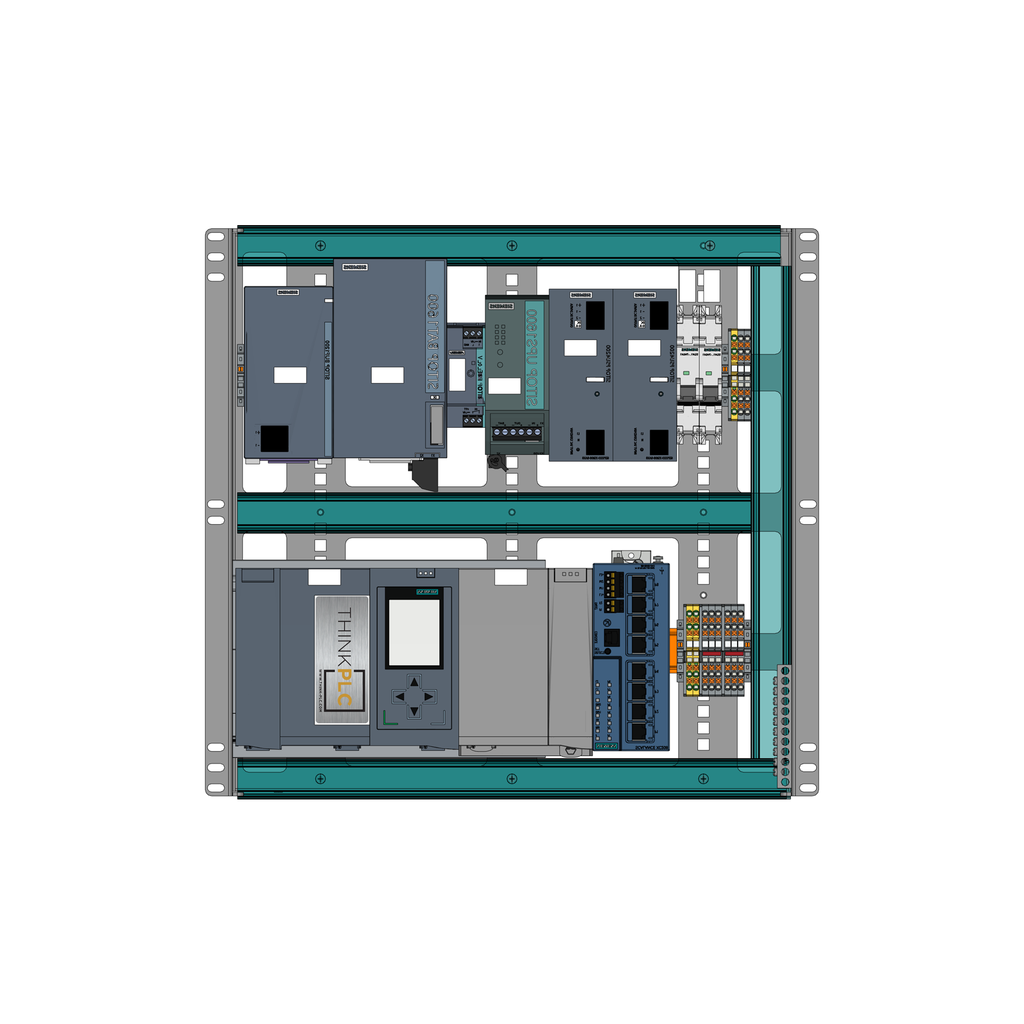

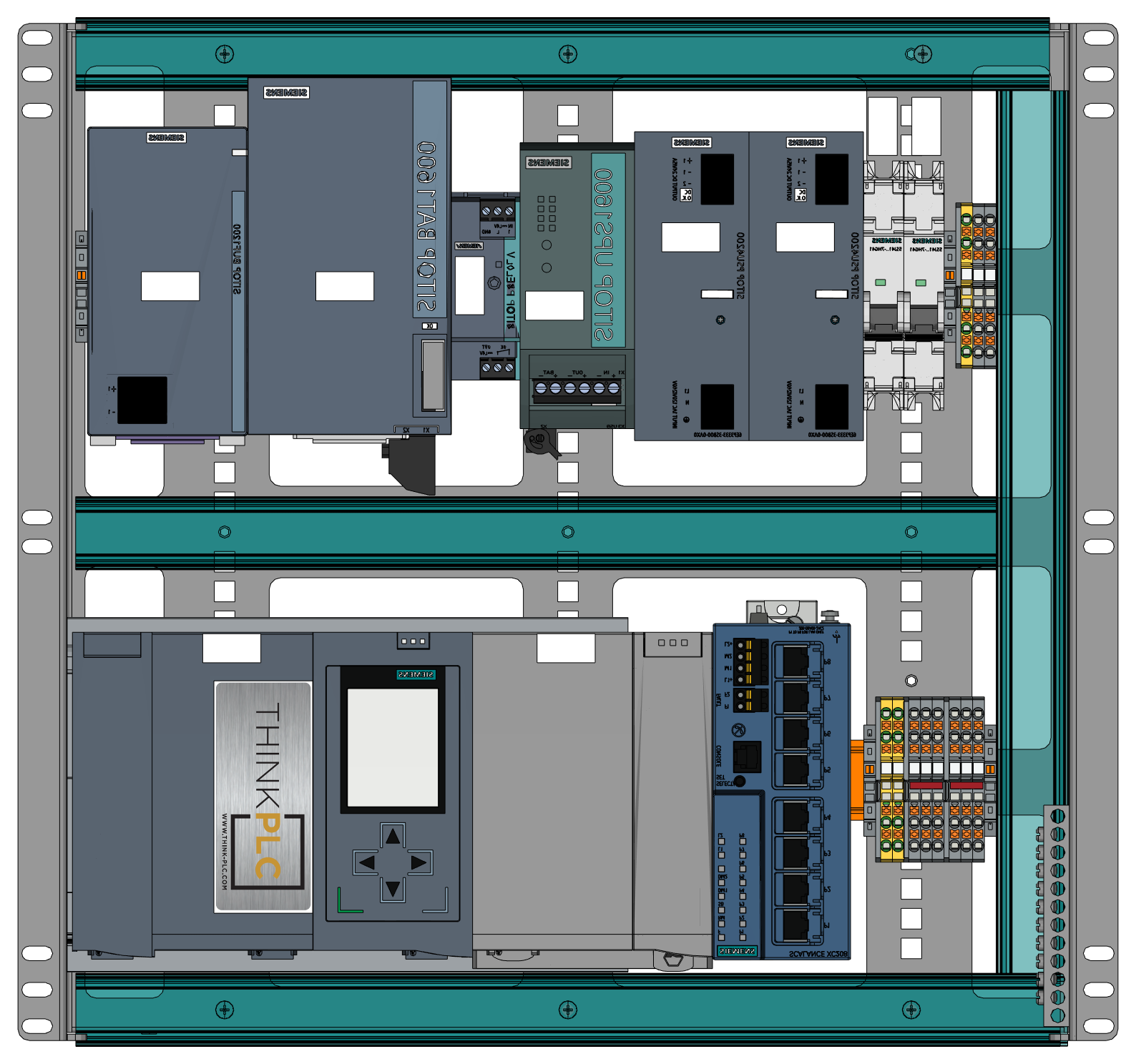

Front elevation of the 10U rack panel showing the S7-1500 CPU, SCALANCE XC208 switch, SITOP power supplies, UPS and battery module
PLC-RM-SIE-1518F-U1 · 10U rack panel, fully populated
120 VAC 1 Ph 60 Hz 4.2 A FLC 5SJ4 6 A 1P C 5SJ4 6 A 1P C PSU4200 24 V / 5 A PSU4200 24 V / 5 A PSE202U redundancy BUF1200 40 A / 300 ms UPS1600 24 V / 10 A BAT1600 24 V / 2.5 Ah SEL1200 4 × 10 A PS 60W + S7-1500 CPU 24/48/60 V DC HF SCALANCE XC208 8 × 10/100 RJ45, managed Field 24 V two channels to terminals Gold blocks are the backup chain — buffer, UPS and battery.
24 V power architecture, common to every configuration

At a glance

Part numberPLC-[RM|WM]-SIE-[1511|1513|1515|1518|1511F|1513F|1515F|1518F]-U1
ControllerSIMATIC S7-1500, PS 60W 24/48/60 V DC HF system supply, 2 GB memory card, 245 mm mounting rail
NetworkSCALANCE XC208 managed Layer 2 switch, 8 × 10/100 RJ45
Supply120 VAC, 1 Ph, 60 Hz; 4.2 A full load current as drawn with the 1518F
Branch protection2 × Siemens 5SJ4106-7HG42, 6 A, 1-pole, C curve, 10 kA, UL 489
24 V generation2 × SITOP PSU4200 24 V/5 A into a SITOP PSE202U 10 A redundancy module
Ride-throughSITOP BUF1200, 40 A for 300 ms
Battery backupSITOP UPS1600 24 V/10 A with USB, and SITOP BAT1600 24 V/2.5 Ah battery module
24 V distributionSITOP SEL1200, four independently protected channels, 10 A each
Field terminalsPhoenix Contact PT 2,5-QUATTRO push-in, 26–12 AWG; 19 feed-through and 4 protective earth
GroundingMechanical ground bar kit, 10 connections, 14–4 AWG, 24–30 lb-in
Line side connections14–12 AWG push-in, one wire per phase, 75 °C conductors
Short circuit rating5 kA, with a 6 A upstream supply breaker or fuse
ListingBuilt as a UL 508A industrial control panel and supplied with a numbered UL listed label; enclosure type Open in the rack format, Type 12 in the enclosed format
Rack format10U adjustable-depth 19-inch rackmount DIN rail panel; 17⅝″ of usable rail across three rails; open type
Enclosed formatnVent Hoffman 30″ × 24″ × 10″ wall-mount enclosure, 27″ × 21″ back panel, door-mounted rotary disconnect with defeat
WirewayPanduit 1″ × 3″ slotted duct with covers, component labelled throughout
Supplied withSchematic set, panel layout, bill of material, connection list and terminal schedule
WarrantyThree years

Configuration

Chassis format RM / WM

Where the chassis lives. The electrical content is identical either way; only the carrier and the incoming disconnect change.

  • 19-inch rack, 10UPLC-RM-SIE-••••-U1
  • Type 12 wall-mount enclosurePLC-WM-SIE-••••-U1

S7-1500 controller 1511 … 1518F

Standard and fail-safe CPUs across the S7-1500 range. Every option ships with the same PS 60W system supply, 2 GB memory card and mounting rail.

  • CPU 1511-1 PNPLC-••-SIE-1511-U1
  • CPU 1513-1 PNPLC-••-SIE-1513-U1
  • CPU 1515-2 PNPLC-••-SIE-1515-U1
  • CPU 1518-4 PN/DPPLC-••-SIE-1518-U1
  • CPU 1511F-1 PNPLC-••-SIE-1511F-U1
  • CPU 1513F-1 PNPLC-••-SIE-1513F-U1
  • CPU 1515F-2 PNPLC-••-SIE-1515F-U1
  • CPU 1518F-4 PN/DPPLC-••-SIE-1518F-U1

The U1 suffix denotes the UPS and battery backup package, which is standard on every configuration of this chassis.

Two supplies, one busEither PSU4200 can fail without dropping the controller
Rides through the dip300 ms of buffering before the battery is called on
Rack or wallThe same electrical design in a 10U panel or a Type 12 box
Documented, not mysteriousSchematics, layout, BOM and terminal schedule ship with it
Three year warrantyEngineered, built and supported in North Carolina

Documentation and downloads

Schematic set and panel layout The multi-line schematics, the rack or backpan layout and the wireway schedule for the configuration you order. PDF · available on request Bill of material and connection list Every part number in the build, with the terminal schedule and wire numbers as delivered. PDF · available on request S7-1200 Micro Box A smaller pre-packaged controller in a Type 4X enclosure, for pumps, doors and process skids. View the product →
  1. All Products
  2. All Products
  3. Main PLC Chassis with Power Backup (Siemens S7-1500)
35% Markup

Main PLC Chassis with Power Backup (Siemens S7-1500)

https://think-plc.com/web/image/product.template/330936/image_1920?unique=a44c8e4

Main PLC Chassis with Power Backup (Siemens S7-1500)

Part number: PLC-[RM|WM]-SIE-[1511|1513|1515|1518|1511F|1513F|1515F|1518F]-U1

A complete SIMATIC S7-1500 control chassis, built either on a 10U 19-inch rackmount DIN rail panel for an IT or equipment rack, or in a Type 12 wall-mount enclosure with a door-mounted disconnect. Two SITOP PSU4200 supplies feed a PSE202U redundancy module, a BUF1200 buffer and a UPS1600 with a BAT1600 battery, so the controller and the network switch survive a supply dip or a short outage without restarting. A SITOP SEL1200 splits the 24 V bus into four independently protected channels, and a SCALANCE XC208 managed switch provides eight ports for the plant network.

Choose any of eight S7-1500 CPUs, standard or fail-safe, from the 1511-1 PN to the 1518F-4 PN/DP. Every chassis ships with the schematic set, panel layout, bill of material and connection list it was built from.

Ordering: Standard configurations are available for direct online purchase. For purchase orders, custom modifications or application support, contact THINK-PLC to configure the solution to your requirements.

Freight is billed separately and is not included at checkout. We will contact you after your order with a freight quote and delivery options; shipment is scheduled after approval. All products are made to order and lead times vary with specification and order volume.

$ 10,795.95 10795.95 USD $ 10,795.95 Tax Excluded

Call for price

  • Chassis Format
  • S7-1500 Controller

This combination does not exist.

UL 508A Built in the USA 3 Year Warranty
