SRMR-TCP-CAP40
CAPTRON
Laser TCP Sensor Kit
Two crossed laser light barriers in a 40 mm measuring field, so the machine finds its own tool centre point. The tool is driven through the beams, the sensor switches, and the control records the position — no dial indicator, no operator judgement, and the same number every time. Supplied with the cordset, the sensor mount and the SINUMERIK integration, and optionally with Easy Screens and documented G-code examples so the routine is a soft key rather than a program someone has to write.
- Two crossed beamsX and Y in one 40 mm field
- 0.01 mm reproducibility0.2 mm resolution
- Two PNP-NO outputs12–30 V DC, straight into CNC I/O
- IP65, industrialanodized aluminium, −10 to +50 °C
- Easy Screens, optionalCAPTRON TCP Setting Functions
- G-code examplesdocumented, editable cycles

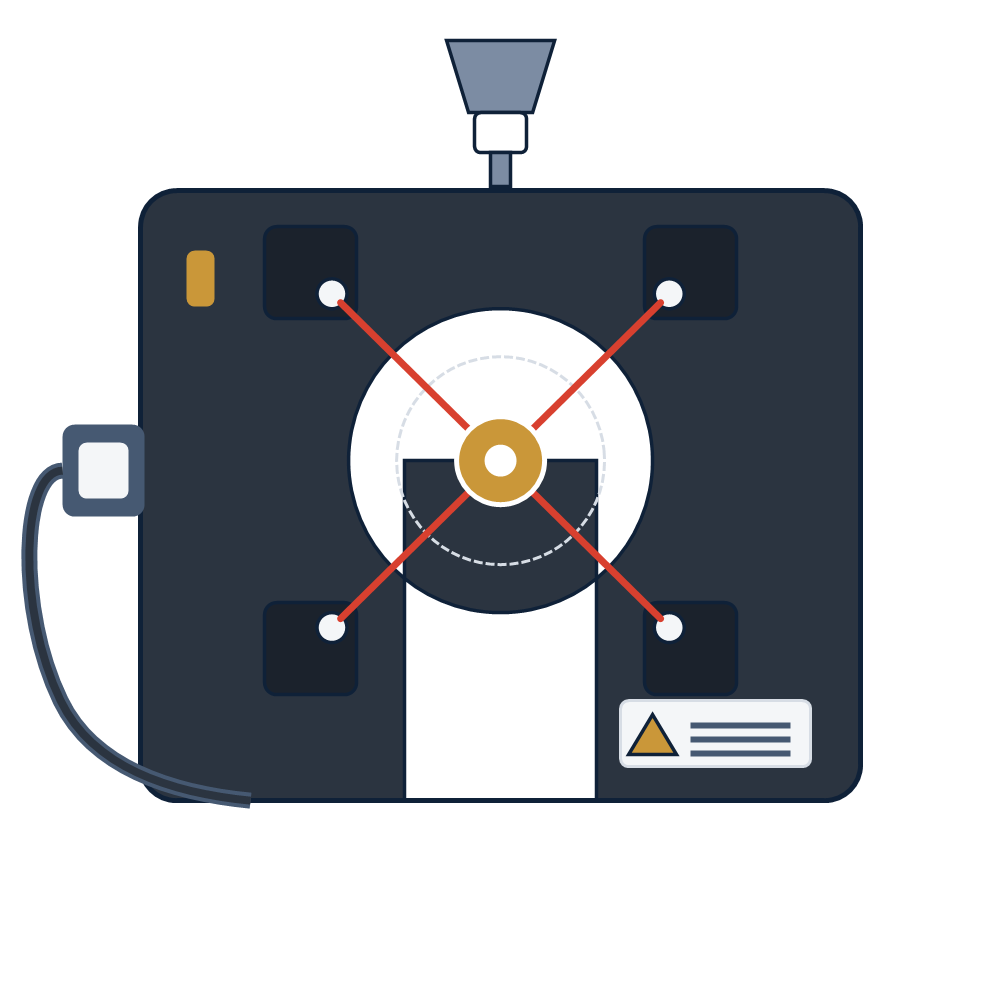

Diagrams are schematic. Sensor dimensions, beam geometry and wiring are given on the CAPTRON data sheet supplied with the kit.
At a glance
What is in the kit
Supplied every kit
Everything needed to get the sensor mounted, wired and measuring on a SINUMERIK cell.
- CAPTRON laser TCP sensorOGLW2-40T-2PS6, 40 mm field
- M8 angled cordsetTKW-40-5 or TKW-40-10, 4-wire
- Sensor mountmachined plate and fasteners
- Wiring materialsrouting, gland and terminations
- SINUMERIK integrationI/O mapping, cycle setup, calibration
Cable length 05 / 10
Angled M8 cordset, 4-wire. Pick the run that reaches your junction point without a splice.
- 5 mTKW-40-5
- 10 mTKW-40-10
Software add-in S0 / S1

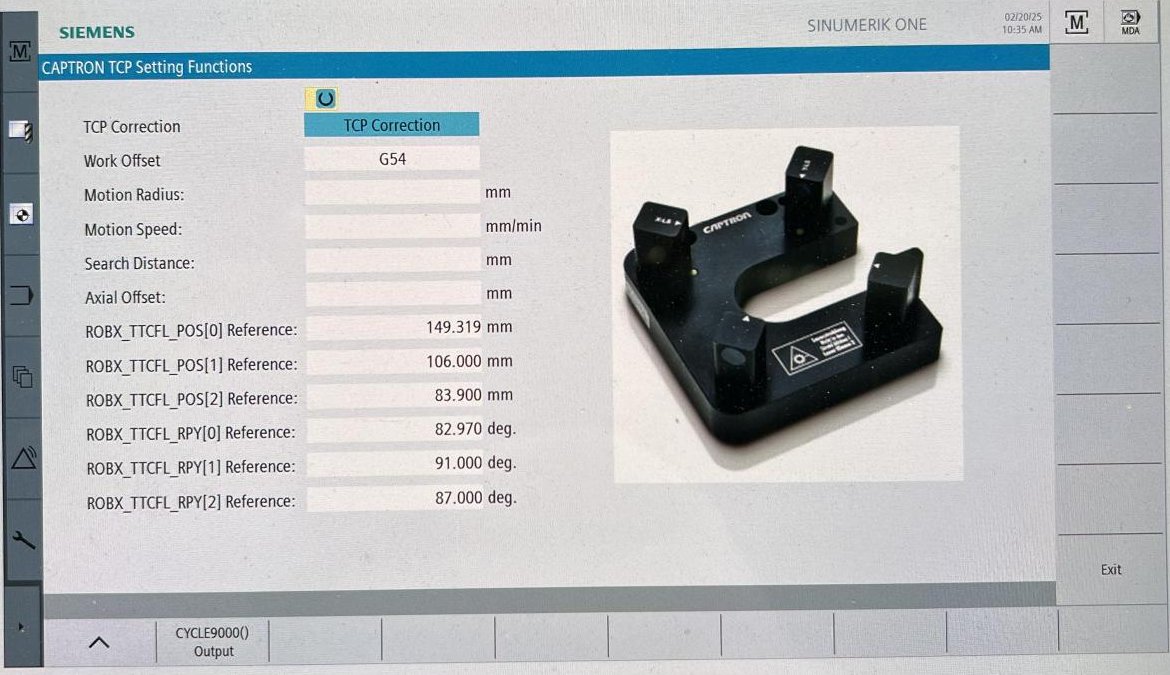

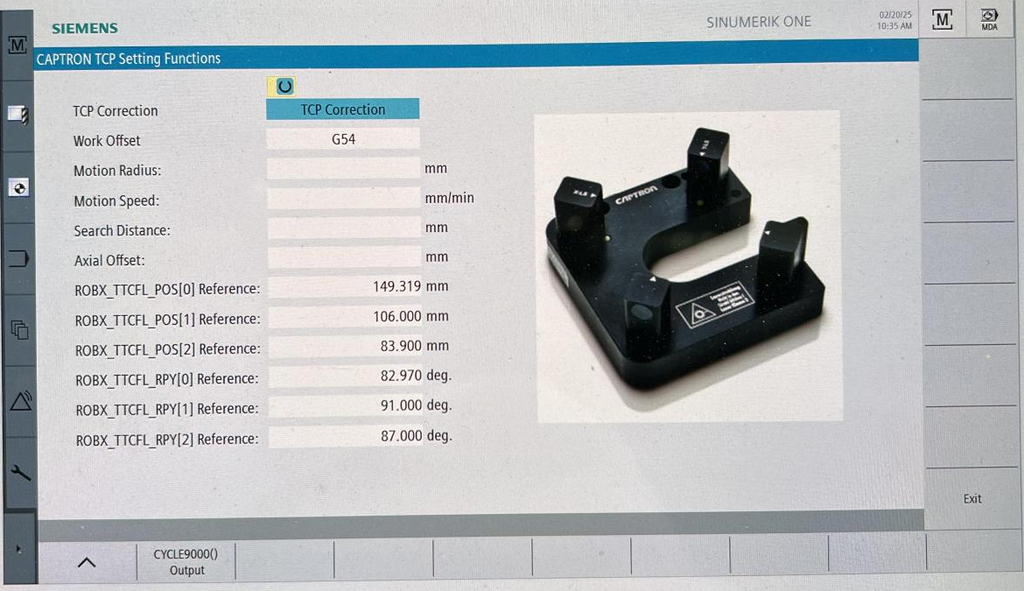

An Easy Screen inside SINUMERIK Operate, CAPTRON TCP Setting Functions, plus the commented cycles behind it if you would rather edit them.
- Without add-inS0
- Work offset and motion setupG54, motion radius, motion speed
- Search distance and axial offsetentered on the screen, not in the program
- Tool carrier referenceposition and RPY values read back
- CYCLE9000() outputwrites the correction from a soft key
Documentation and downloads
,%20Without%20software%20add-in)?unique=a227d21)
,%20Without%20software%20add-in)?unique=a227d21)
CAPTRON Laser TCP Sensor Kit
CAPTRON Laser TCP Sensor Kit
Part number: SRMR-TCP-CAP40
A CAPTRON OGLW2-40T-2PS6 laser tool-centre-point measuring unit supplied as a working kit: sensor, angled M8 cordset, machined sensor mount, wiring materials and the SINUMERIK integration that maps the two PNP outputs, sets up the measuring cycle and calibrates the result. Two crossed class 2 laser light barriers in a 40 mm field give 0.01 mm reproducibility at 0.2 mm resolution.
The optional software add-in delivers SINUMERIK Operate Easy Screens plus commented G-code examples, so setting the tool centre point is a soft key on the operator panel rather than a program someone has to write.
The same sensor is available factory-fitted on the Robotic Tool Change Rack (HSK63).
Ordering: Standard configurations are available for direct online purchase. For purchase orders, other CAPTRON sensor sizes or application support, contact THINK-PLC to configure the solution to your requirements.
Freight is billed separately and is not included at checkout. We will contact you after your order with a freight quote and delivery options; shipment is scheduled after approval. All products are made to order and lead times vary with specification and order volume.
