RUN-MY-ROBOT™

Run MyRobot Cabinet
for autonox Robots

A SINUMERIK Run MyRobot control cabinet for autonox articc articulated robots, built to order. CNC-grade motion control for the robot arm, configured across five option groups. Servo motors and motor/encoder field cables are quoted separately.

  • CNC control of the robotSINUMERIK motion, not a teach pendant
  • Twelve operator stationsIPC or ITC, with optional display and MCP
  • Optional NX axis extensionfor additional controlled axes
  • Deployment softwarecreated and installed by THINK-PLC
  • Field DRIVE-CLiQ cabling10 m or 20 m IP20 to IP20
  • Engineered to orderby the THINK-PLC integration team
Built in the USAAssembled, wired and tested by THINK-PLC
UL 508ABuilt to the industrial control panel standard

Configure the cabinet

2,736 combinations across five option groups. Configure it here, or we will size it with you.

A Operator experience IPC or thin client, with optional display and MCP.
  • IPC + IFP1500
  • IPC + IFP1500 + MCP1900
  • IPC + IFP1500 + MCP2400
  • IPC + IFP2400
  • IPC + IFP2400 + MCP2400
  • IPC + no display
  • ITC1500 only
  • ITC1500 + MCP1900
  • ITC1500 + MCP2400
  • ITC2400 only
  • ITC2400 + MCP2400
  • No options
B Axis extension NX module for controlled axes beyond the robot. Additional axes can be added on request.
  • Add NX
  • No NX
C RMR deployment software We build and install the RMR package, or you do.
  • Yes — create and install
  • No — I will install
D Field DRIVE-CLiQ cable Cabinet to robot, IP20 to IP20.
  • 10 m
  • 20 m
  • None
E Robot Nineteen autonox articc models (AT series), under base part SRMR-ANOX. Servo motors and field cables are quoted separately per model.
  • AT 00004
  • AT 00005
  • AT 00005-01
  • AT 00006
  • AT 00006-01
  • AT 00010
  • AT 00010-01
  • AT 00011
  • AT 00014
  • AT 00016
  • AT 00025
  • AT 00026
  • AT 00026-01
  • AT 00028
  • AT 00034
  • AT 00035
  • AT 20005
  • AT 20006
  • AT 20010

At a glance

Base part numberSRMR-ANOX
CNC controllerSINUMERIK ONE
Drive systemSINAMICS, Safety Integrated
Operator terminalHT10 handheld, included
Motors & field cablesNot included · quoted separately
Supply480 VAC, 3-phase
Full load currentSized per robot model
SCCR30 kA
StandardsUL 508A
AssemblyBuilt in the USA
Robot models19 autonox articc · AT 00004 to AT 20010
Build combinations2,736
Operator stations12 IPC / ITC options
Axis extensionNX module; more axes on request
Deployment softwareOptional, installed by THINK-PLC
Field DRIVE-CLiQ10 m, 20 m or none
DrawingsDimension and 3D model on request
Built in the USAto UL 508A
Faster commissioningwith deployment software
CNC-grade motionon a robot arm
Nineteen autonox modelsAT 00004 through AT 20010
Backed by THINK-PLCsupport

Documentation and downloads

Training included SINUMERIK Run MyRobot — Commissioning and Programming Five sections covering configuration and commissioning, the ROBX kinematic transformation, and NC programming, with SINUMERIK 840D sl material as background. Six Siemens reference manuals. Enrollment provided with your cabinet. View the course →
Run MyRobot brochure CNC machining capability in a robot cell. PDF · available on request Cabinet dimensions Footprint and clearance drawings for cell layout. PDF · available on request 3D cabinet model Cabinet model for layout and clearance checks. 3D model · available on request
  1. All Products
  2. All Products
  3. Sinumerik Run My Robot Cabinet (Autonox)
35% Markup

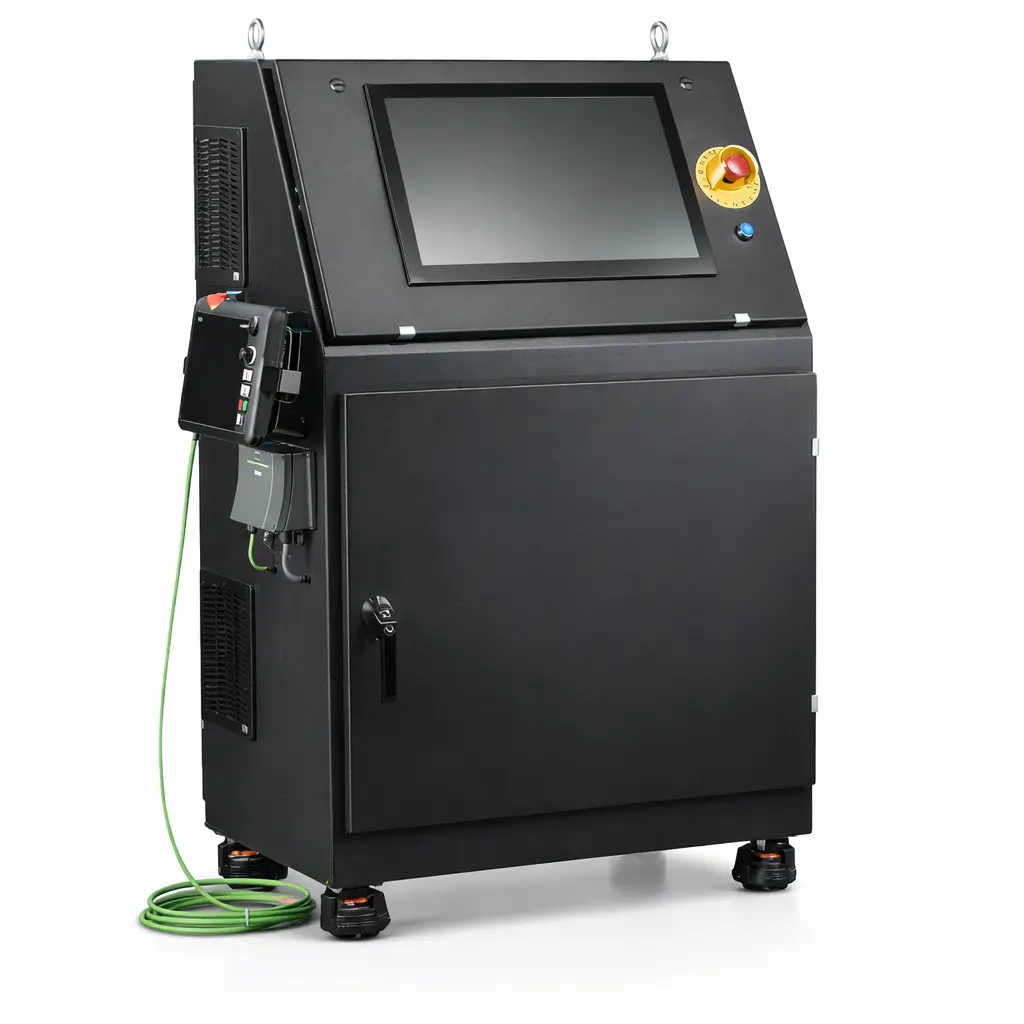

Sinumerik Run My Robot Cabinet (Autonox)

https://think-plc.com/web/image/product.template/331656/image_1920?unique=36d0a5b

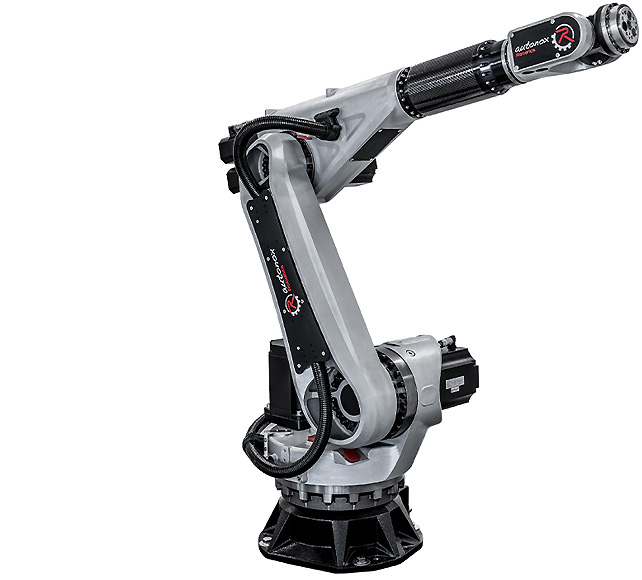

autonox articc articulated robot
SINUMERIK RUN MYROBOT
Controller Cabinet — for autonox Robots

This is the Siemens control cabinet that drives your autonox robot mechanics. The robot shown is for reference and is not included.

COMPATIBLE WITH
autonox Robotics

SINUMERIK Run MyRobot Base Package Controller Enclosure with HT10

For autonox articc articulated robots (AT series) | Part Number: SRMR-ANOX-<ROBOT>

A turnkey, cabinet-based control solution built around the Siemens SINUMERIK ONE controller and SINAMICS drive system, with Safety Integrated architecture and an HT10 handheld terminal. It executes CNC toolpaths directly on the autonox robot mechanics, and is plug-in prepared for added axes, tool change, spindle integration, probing and PROFINET expansion.

Configuration options and included hardware are detailed below.

Scope note: this cabinet does not include the robot mechanics, the SIMOTICS servo motors, or the motor/encoder field cables. Motors and field cable sets are quoted separately for the selected robot model and cable lengths.

📐 Autonox drive topology diagrams

$ 68,983.09 68983.09 USD $ 68,983.09 Tax Excluded

Call for price

  • A: IPC/IFP Operator Experience Option
  • B: Axis Extension
  • C: RMR Deployment Software
  • D: Field Drive Cliq Cable (IP20 >IP20)
  • E: Robot

This combination does not exist.

UL 508A Built in the USA 3 Year Warranty
